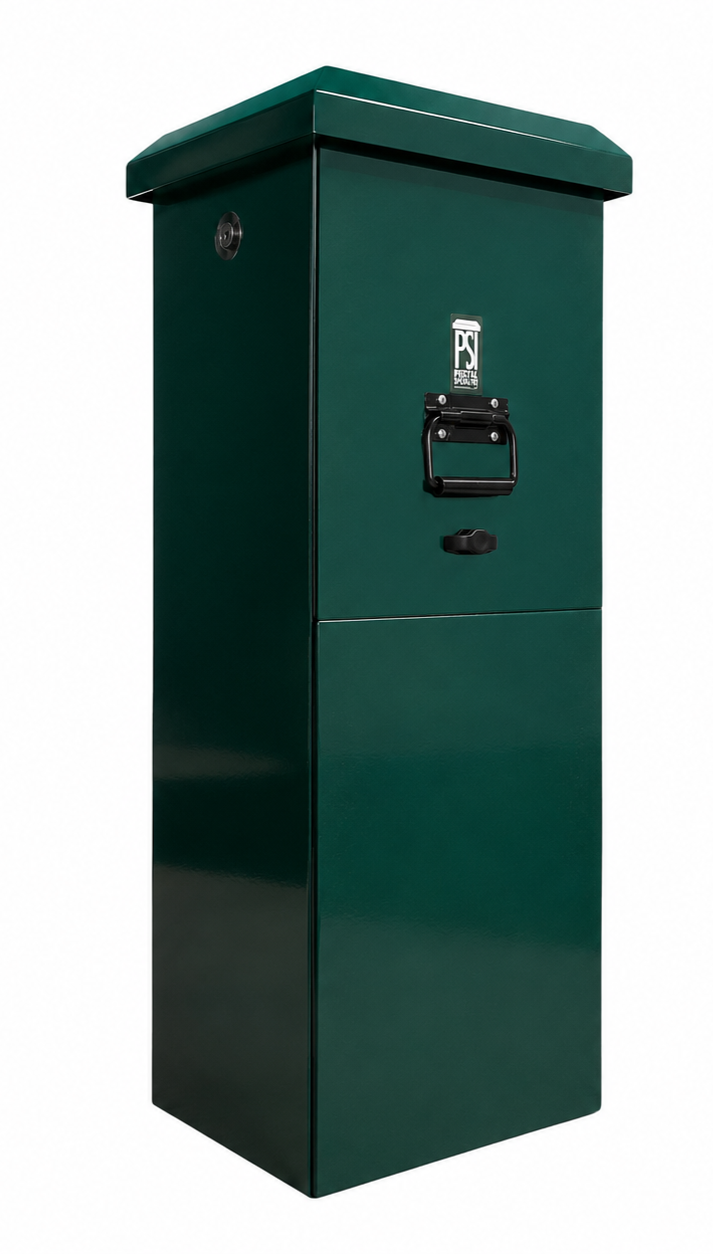

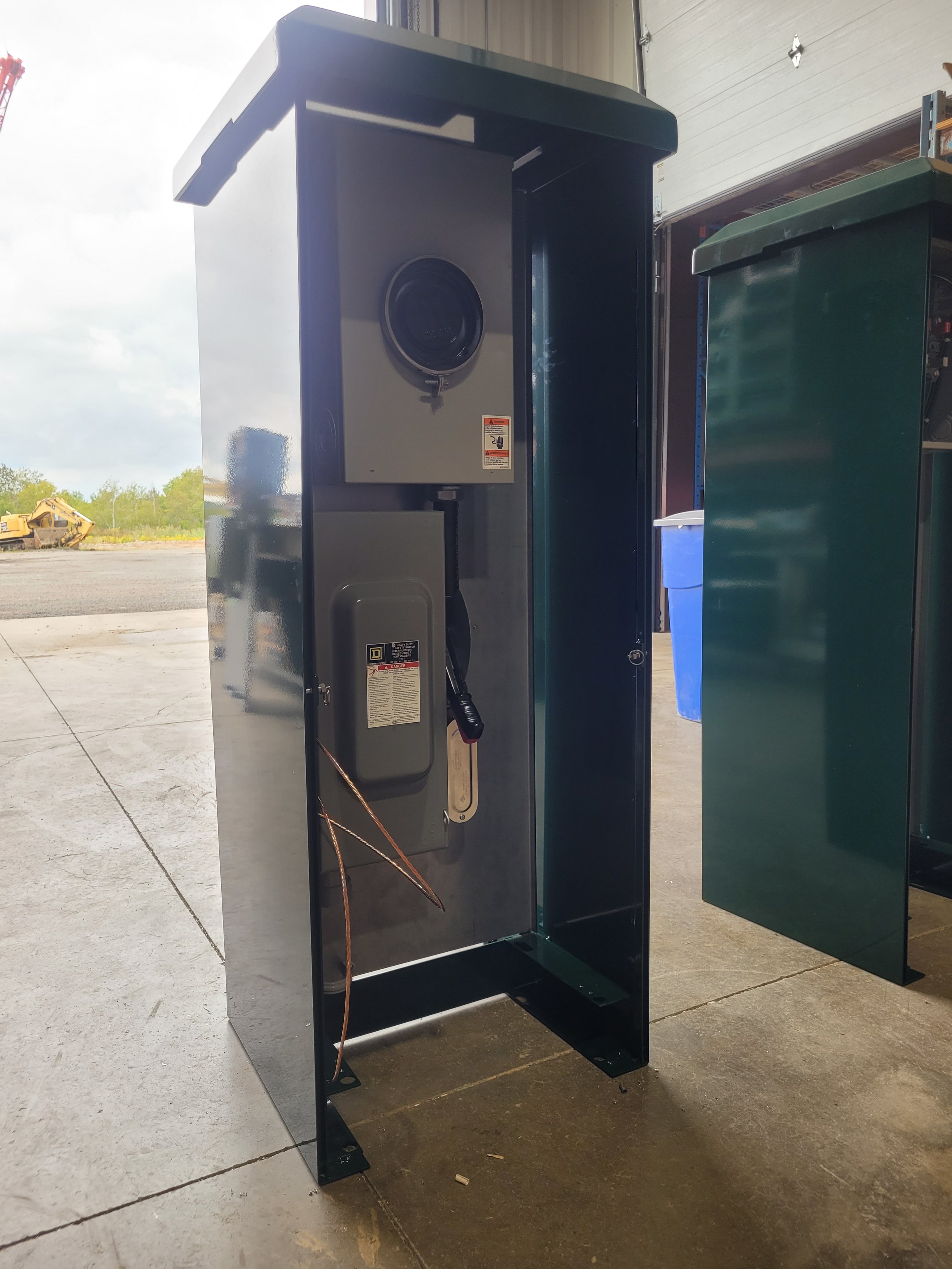

SLM60

Metered Power Distribution Pedestals

Click Here for a PDF Cut Sheet.

Click Here for a PDF Drawing.

SLM60 Manual

MEASUREMENTS

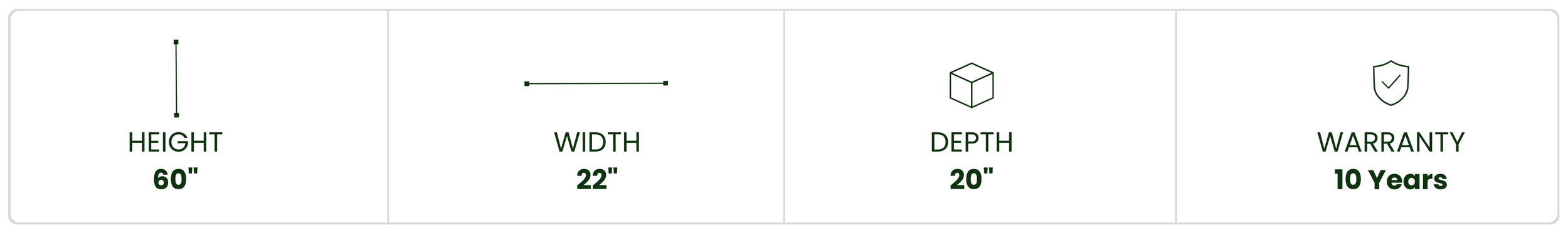

  • Pedestal Enclosure Sits 60’’ tall x 22’’ wide x 20’’ deep.

FEATURES

Large size allows flexibility for distribution panel selection….from a small 12 cct. 120/240V distribution panel with a 60A Main breaker up to a 60cct. panel with a 200A Main. Can even accommodate 20” wide, 600V, 3 Phase distribution panels.

  • Complete with 2” PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

  • Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

  • Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

CONSTRUCTION

Constructed from heavy-gauge aluminum.

  • Electrostatic powder coated “Equipment Green” as standard.

  • Choice of meter bases to meet local Hydro Authority requirements.

  • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

  • Concealed Ventilation under lid to prevent condensation build-up.

  • Stainless Steel fasteners used to mount all internal and external components.

CUSTOMIZATION

Can be designed to include timers, contractors, photocells etc. for any type of motor and lighting control.

  • Custom colours available

  • Also available in Galvanized or Stainless Steel construction

TYPICAL USES

  • Commercial

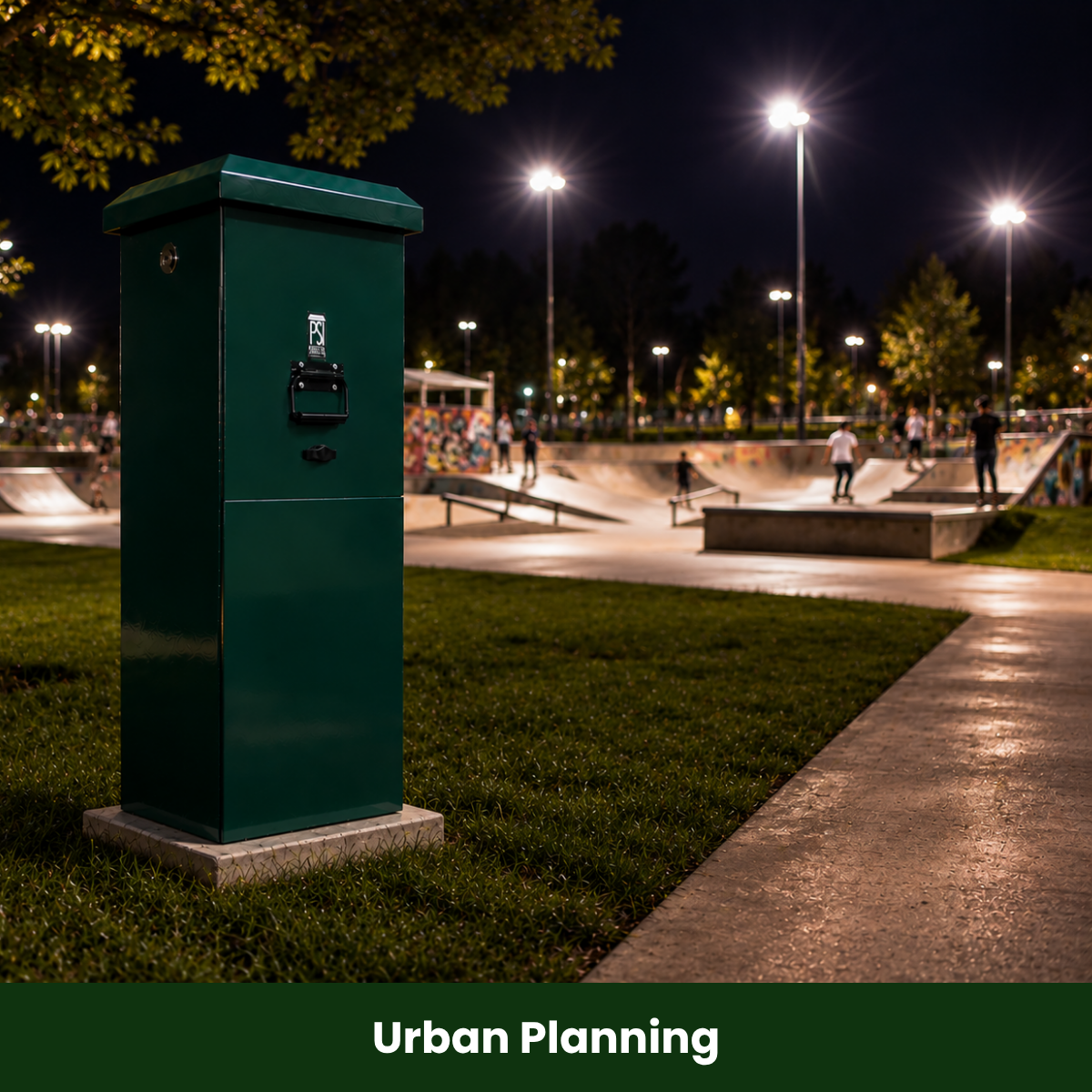

  • Municipal

  • Park/Campground

  • Marina

  • Agricultural

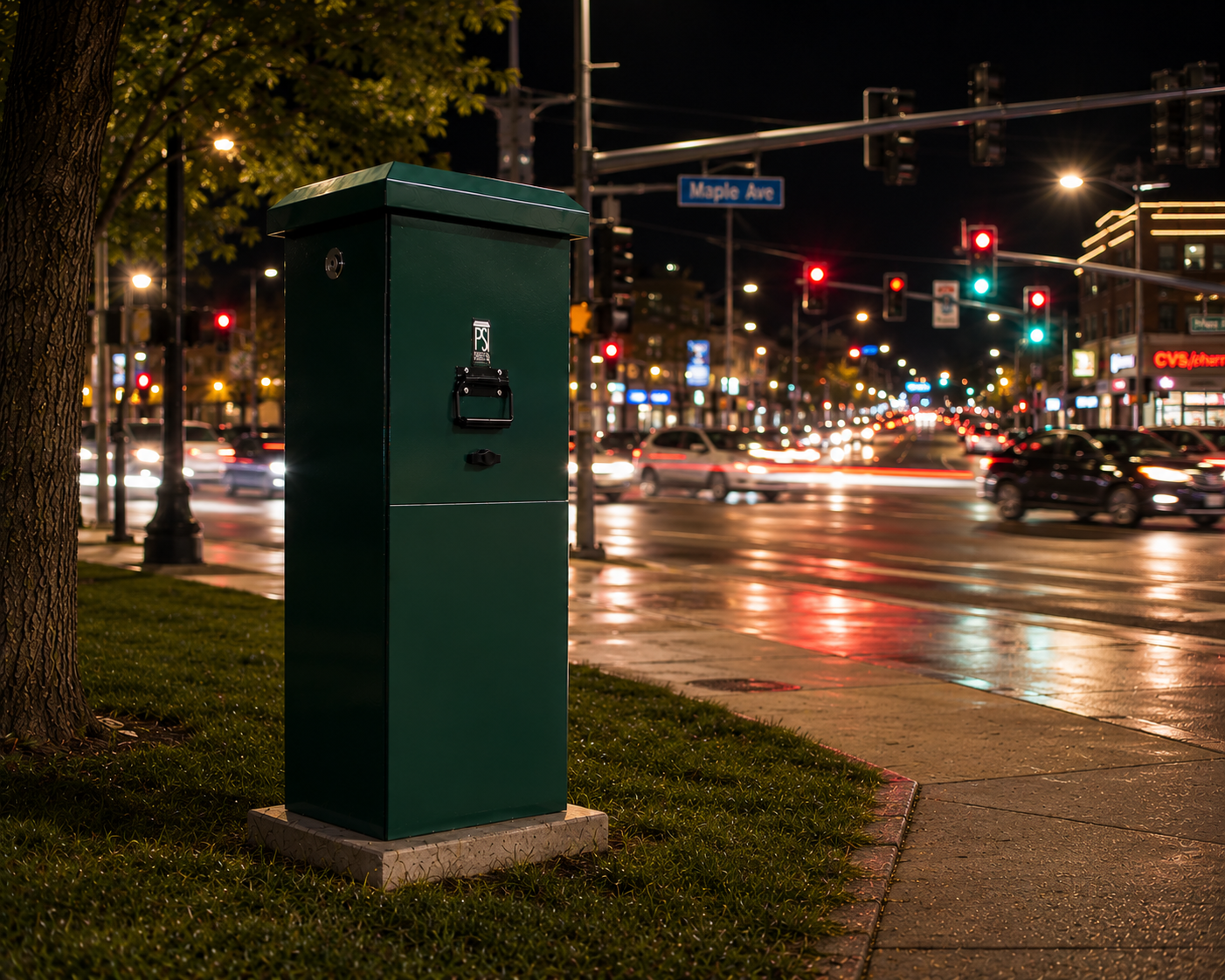

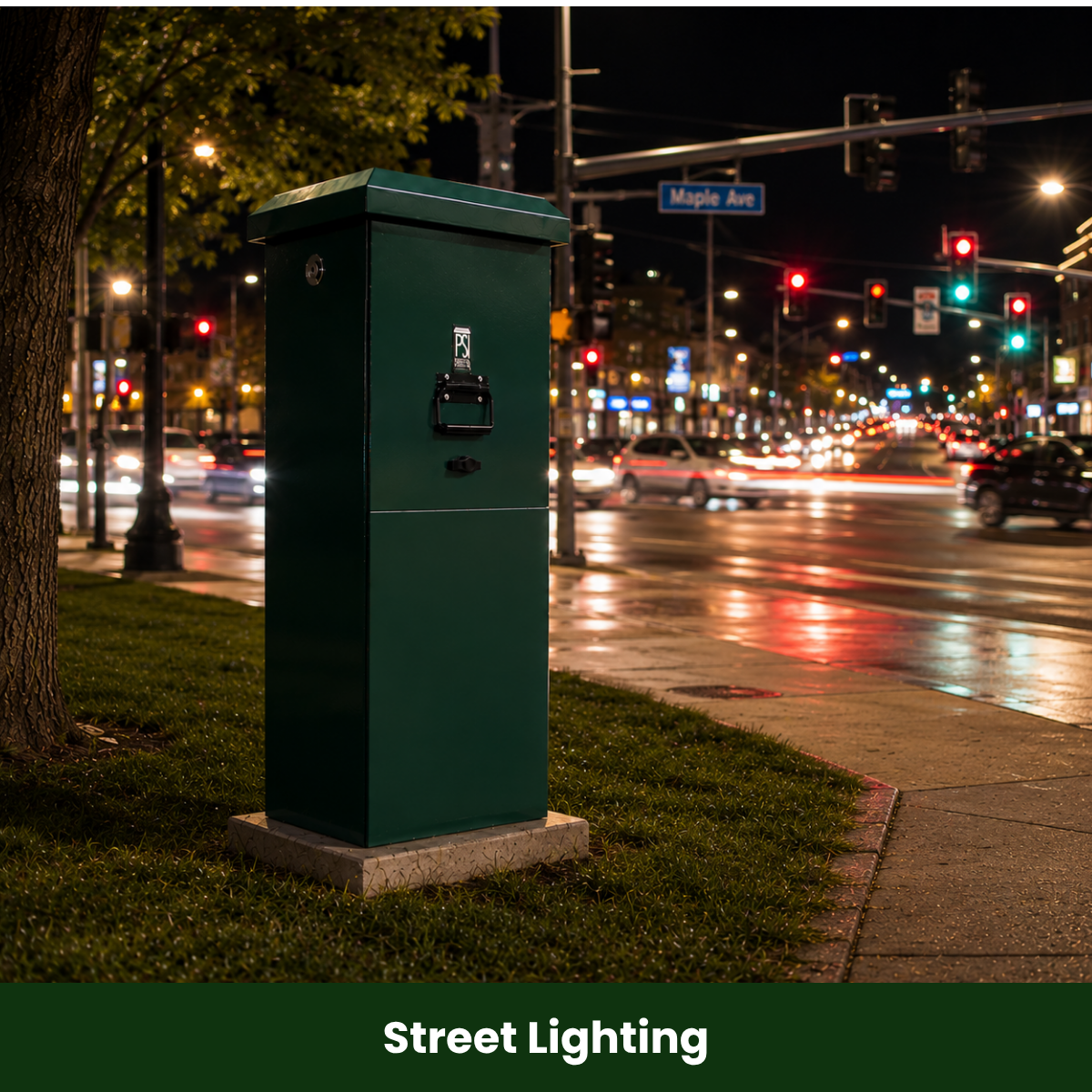

  • Street Lighting Power Distribution and Control, Metered

  • Electric Car Charging Power Distribution and Control, Metered

  • LED Lighting Controls, Metered

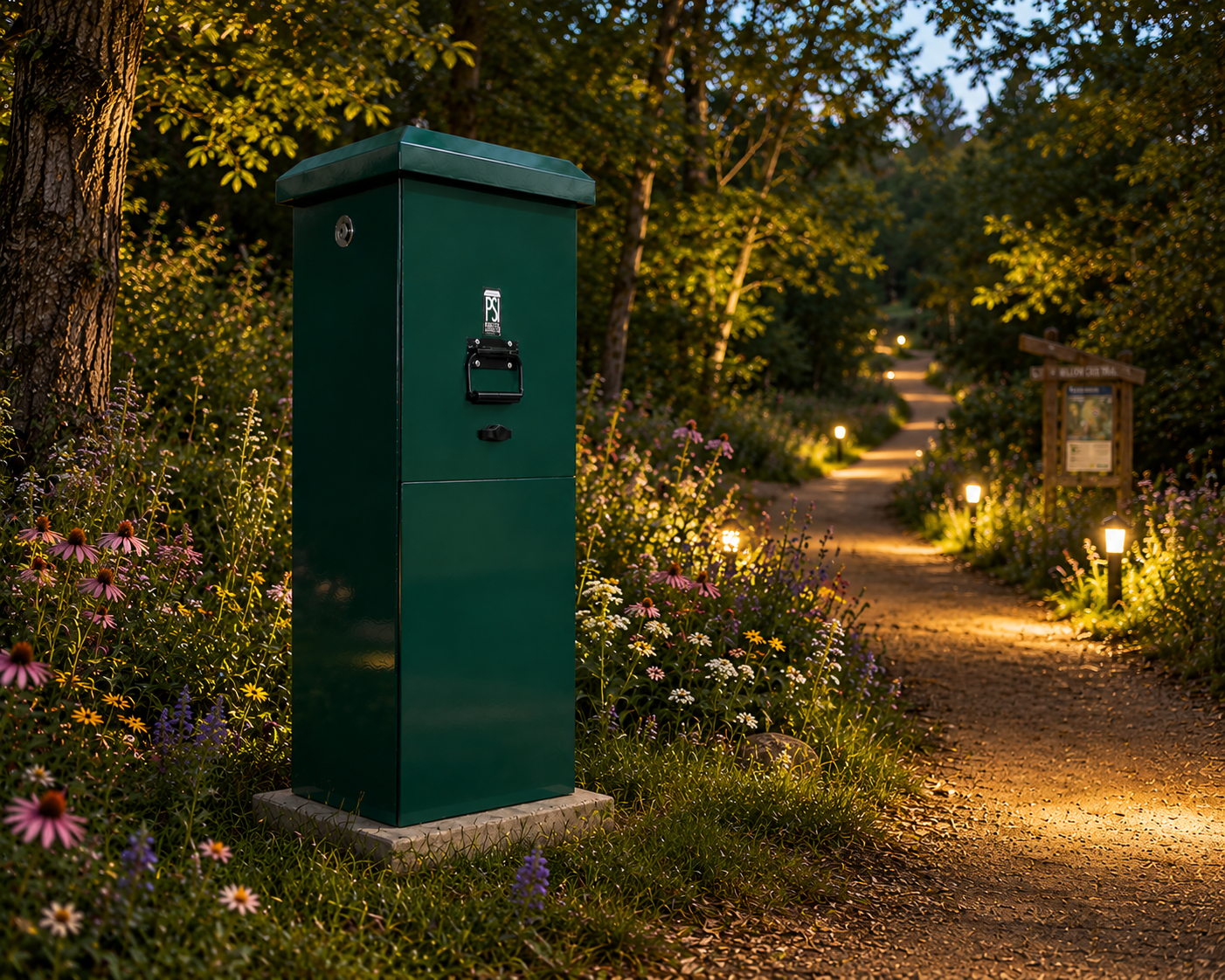

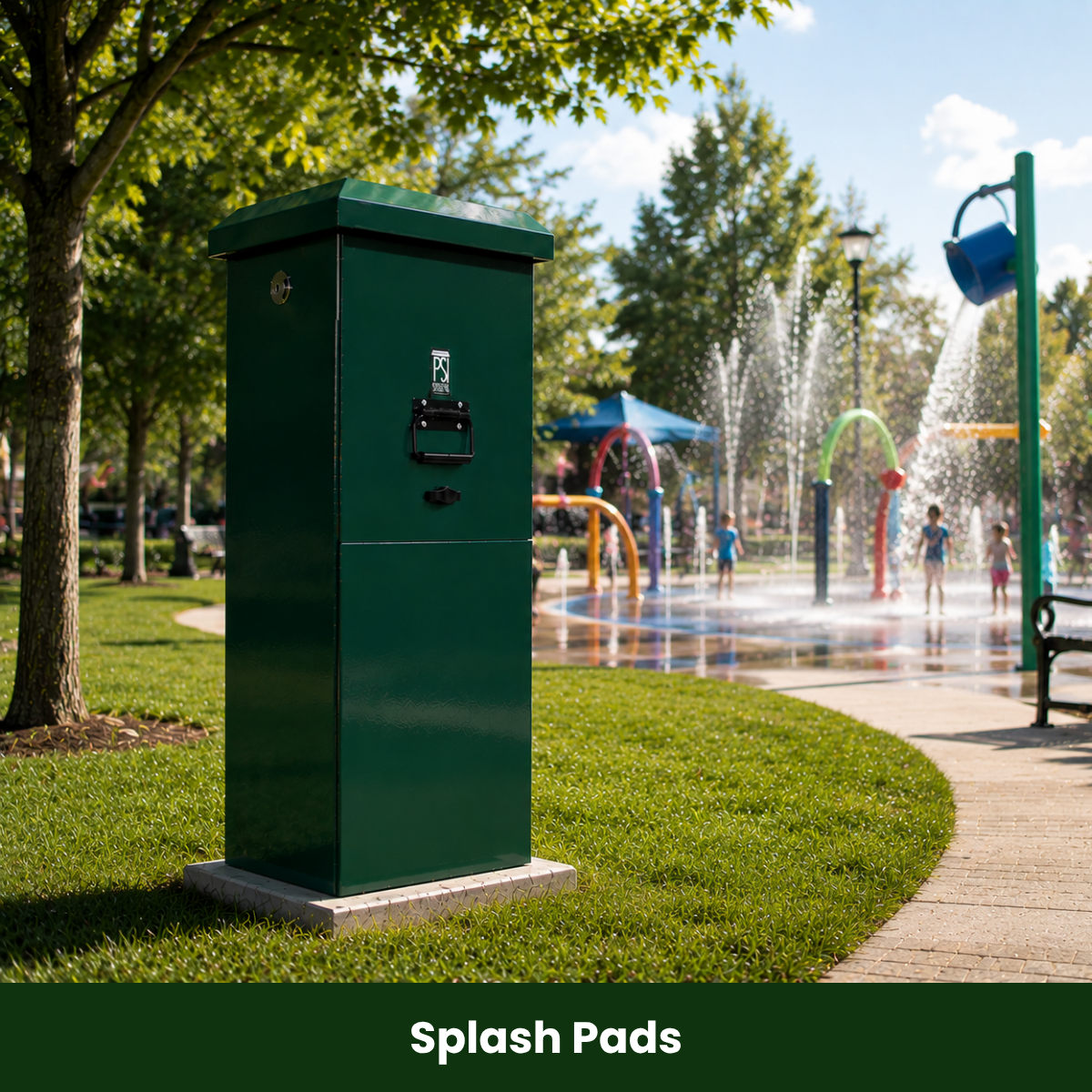

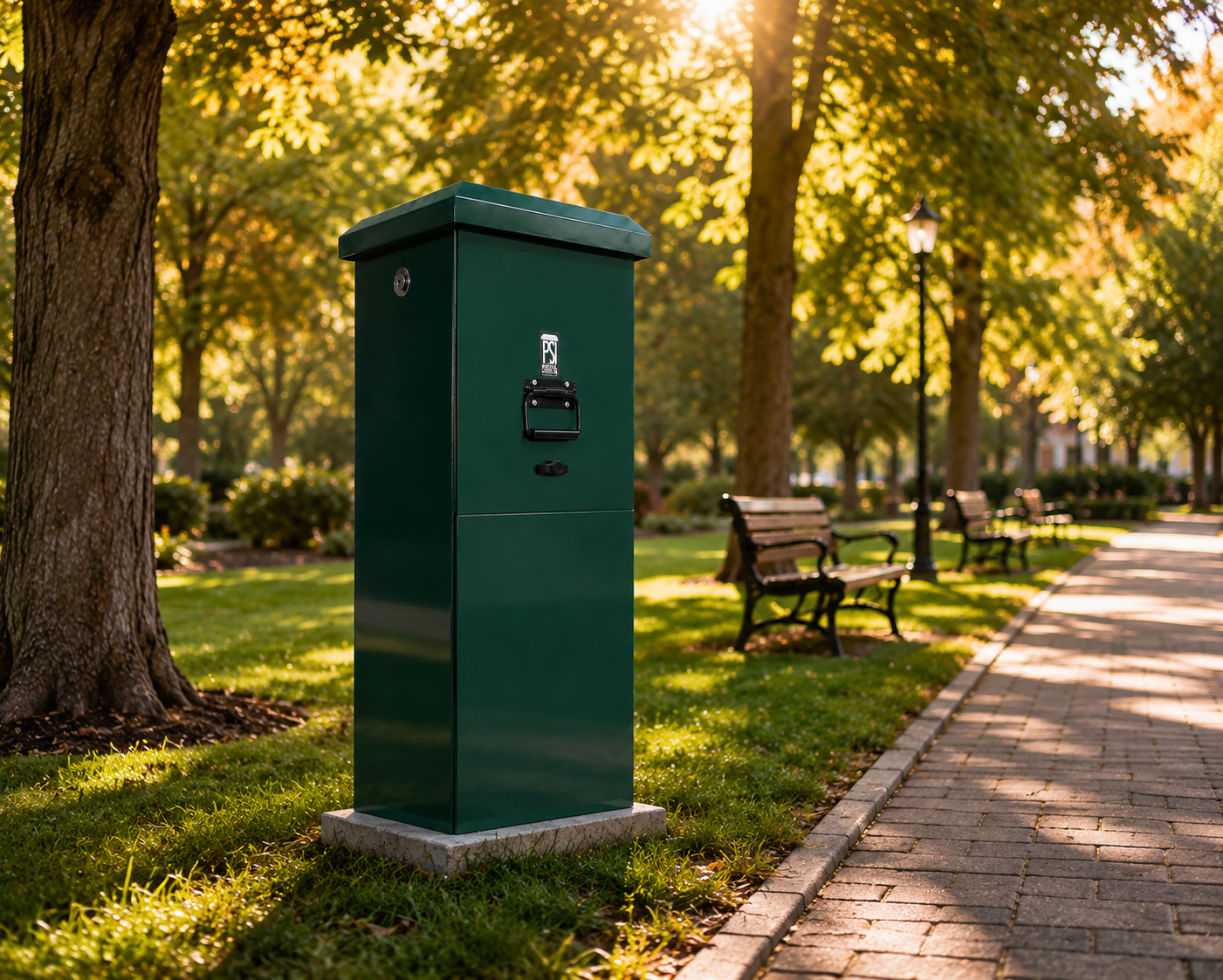

  • Parks Power Distribution and Control, Metered

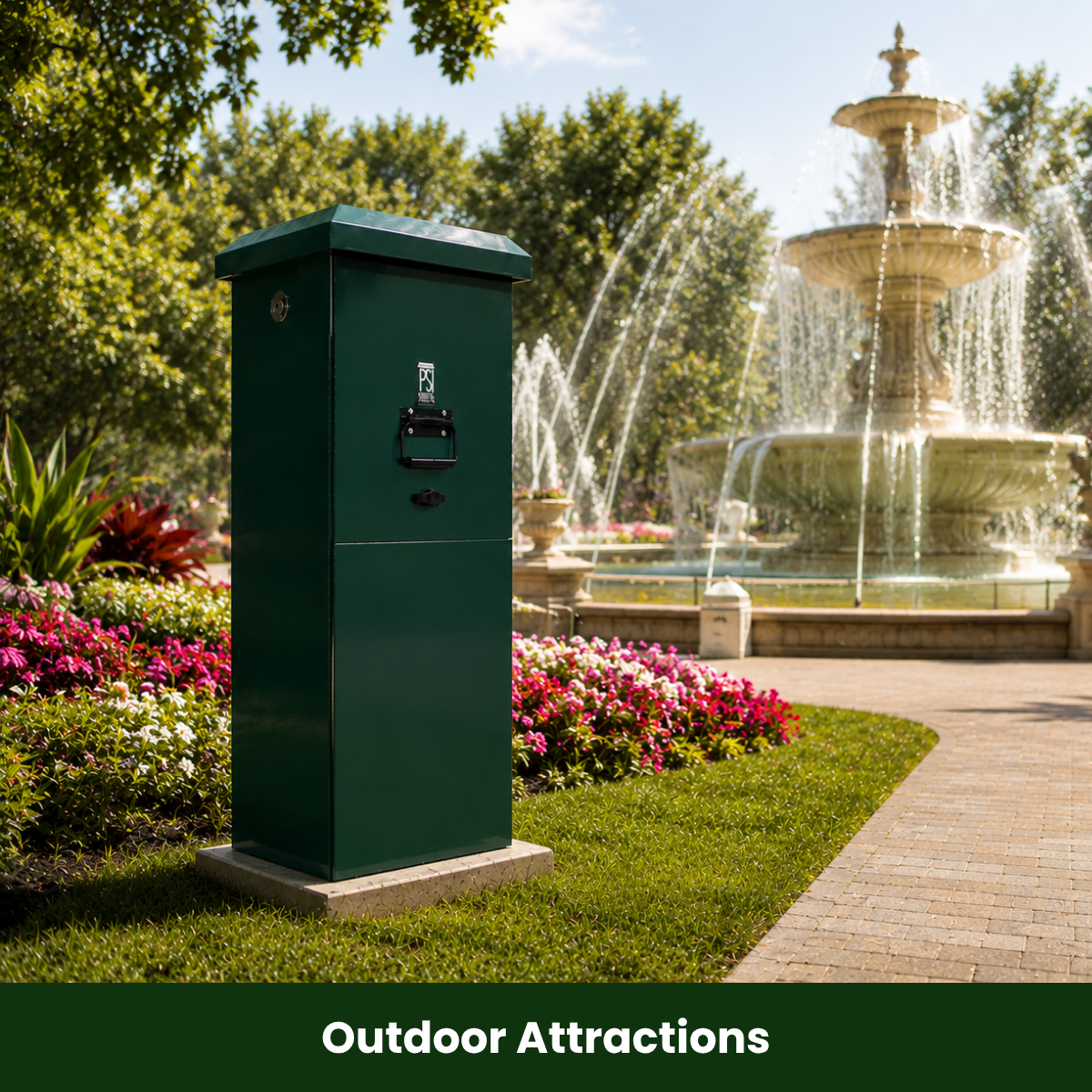

  • Event Pedestal Power Distribution and Control, Metered
