SLM42

Metered Power Distribution Pedestals

Click Here for a PDF Cut Sheet.

Click Here for a PDF Drawing.

SLM42 Manual

MEASUREMENTS

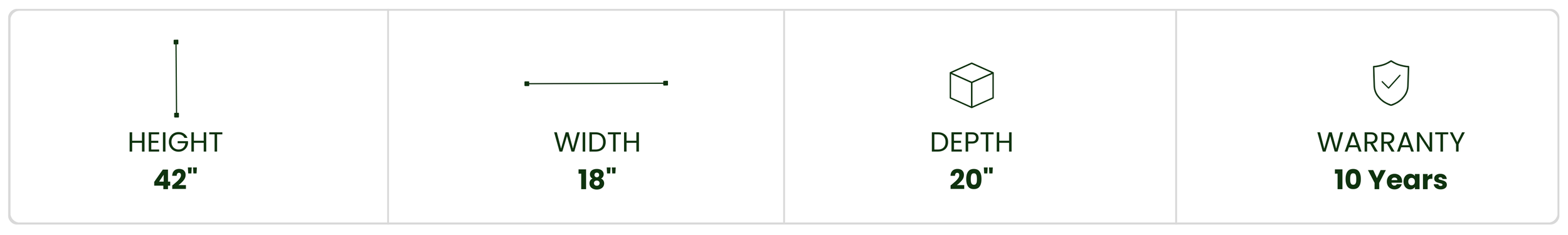

  • Pedestal Enclosure Sits 42’’ tall x 18’’ wide x 20’’ deep.

FEATURES

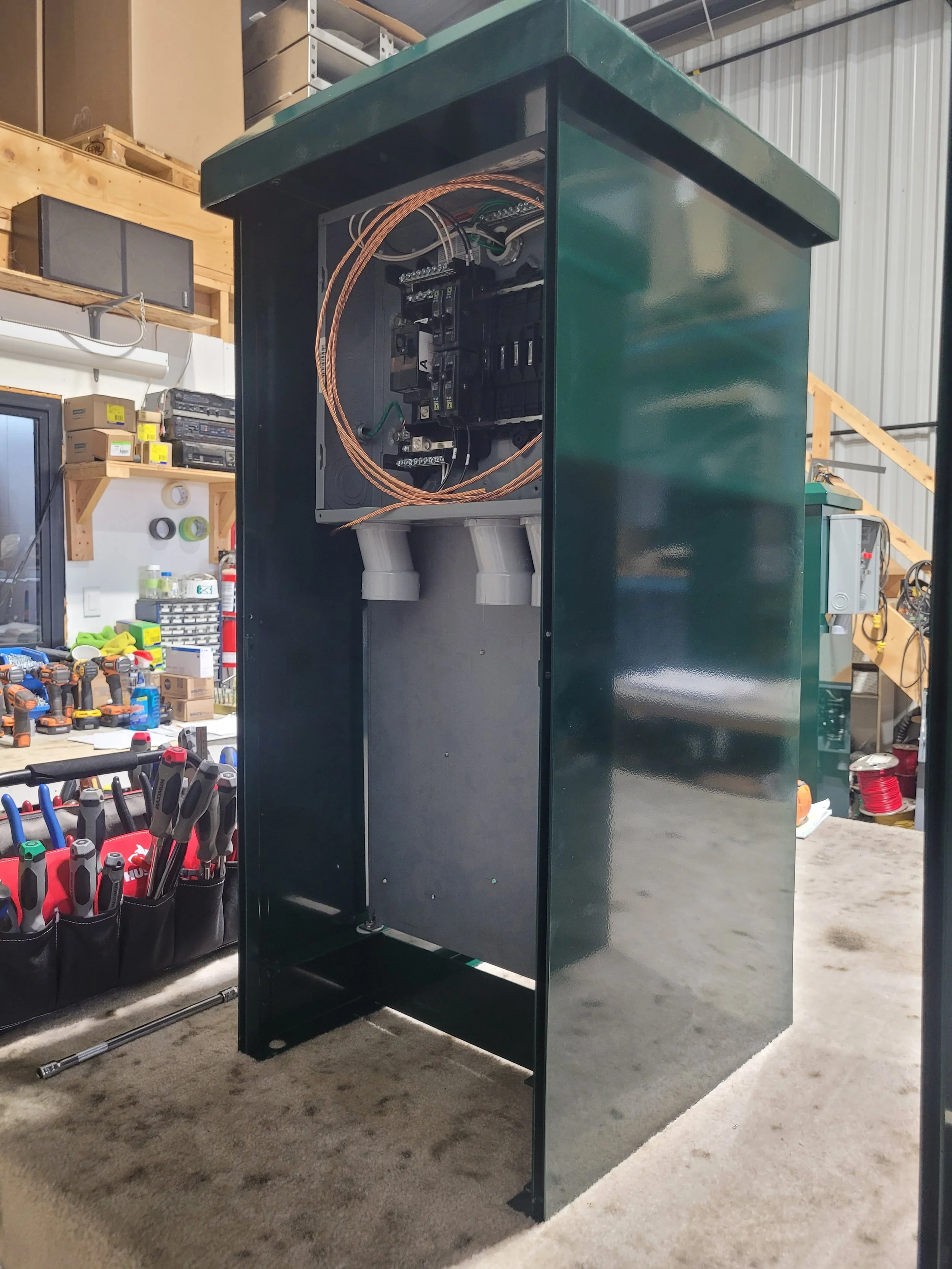

Typically included with a 12 cct. 120/240V Distribution panel with a 60A, 100A, or up to 200A, 2 Pole main breaker and any combination of 1 and 2 pole load breakers required. Larger distribution panels up to 200A and up to 100A 3 Phase can be installed.

  • Complete with PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

  • Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

  • Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

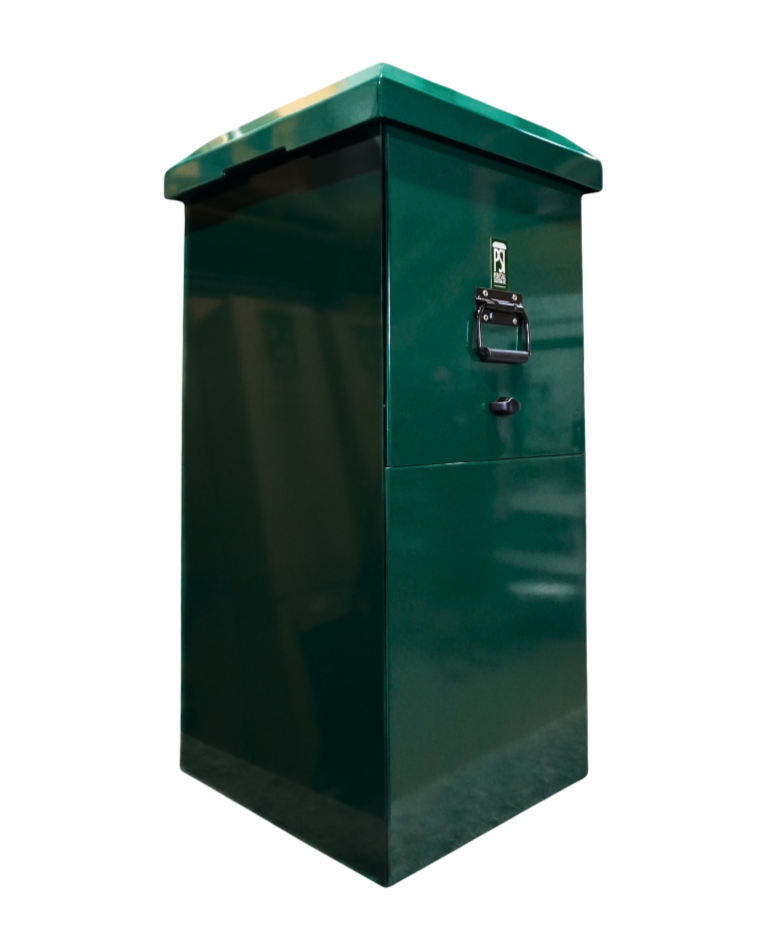

CONSTRUCTION

Constructed from heavy-gauge aluminum steel

  • Electrostatic powder coated “Equipment Green” as standard.

  • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

  • Concealed Ventilation under lid to prevent condensation build-up.

  • Stainless Steel fasteners used to mount all internal and external components.

CUSTOMIZATION

Can be designed to include timers, contractors, photocells etc. for any type of motor and lighting control.

  • Custom colours available

  • Also available in Galvanized or Stainless Steel construction

TYPICAL USES

  • Commercial

  • Municipal

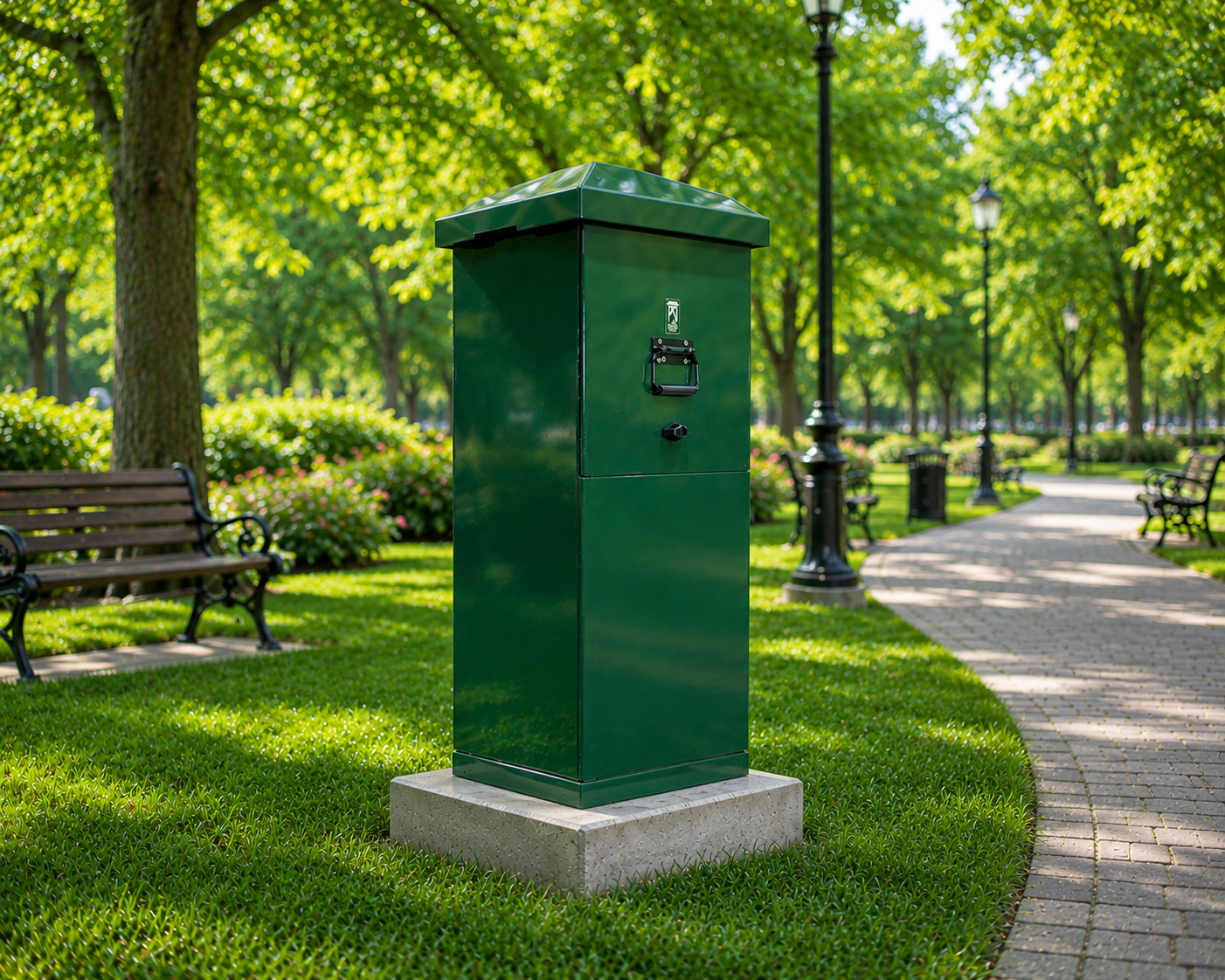

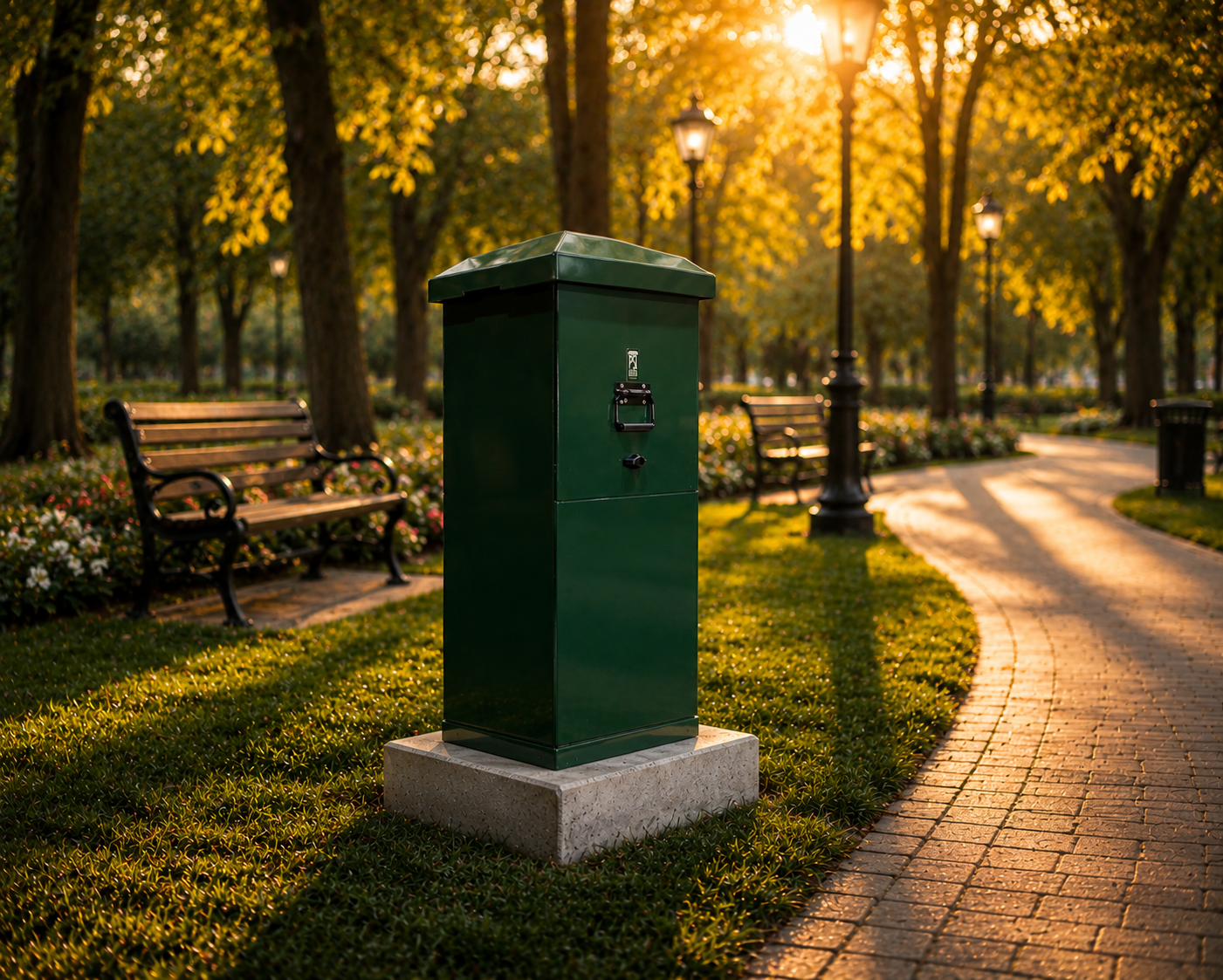

  • Park/Campground

  • Marina

  • Agricultural

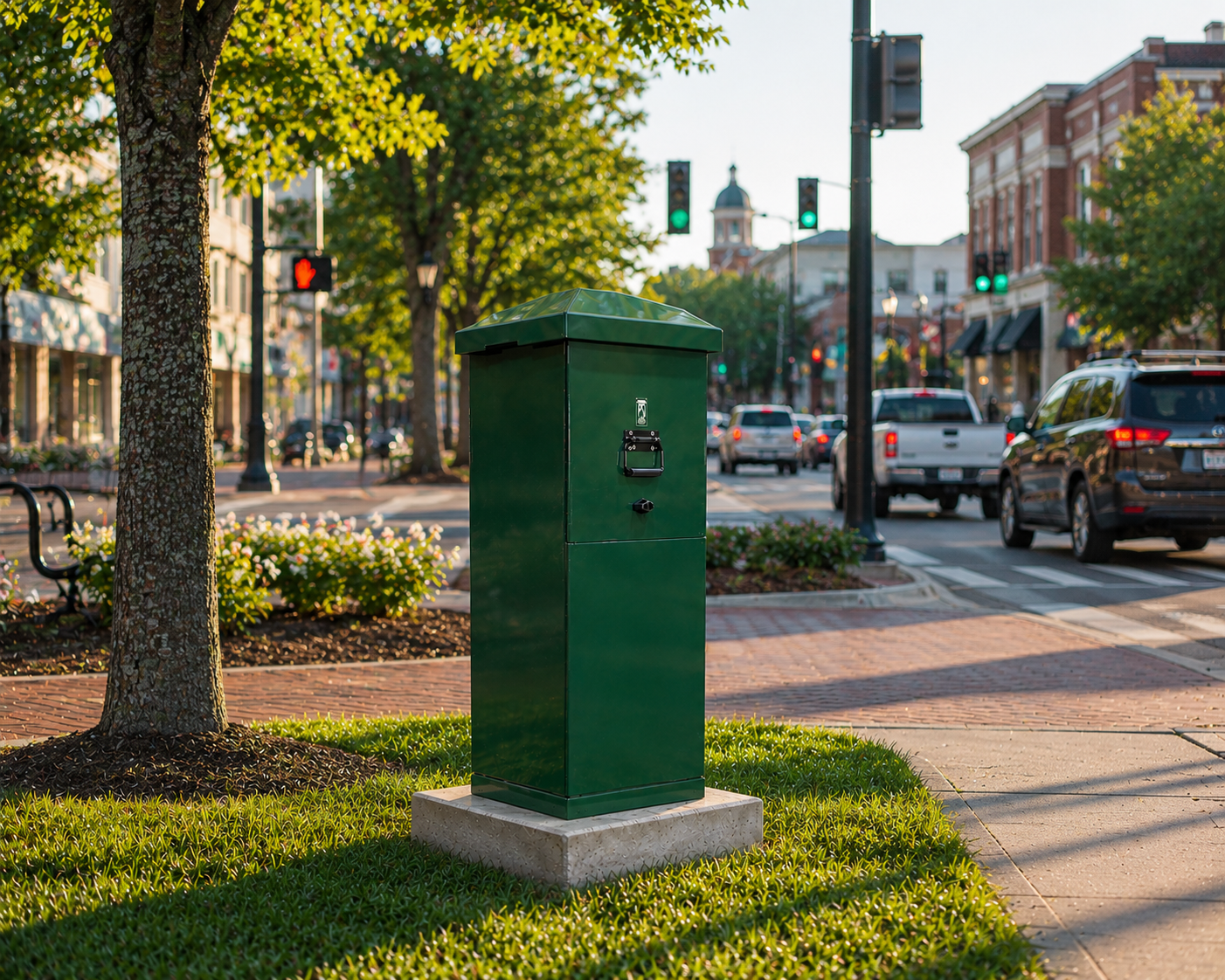

  • Street Lighting Power Distribution and Control, Metered

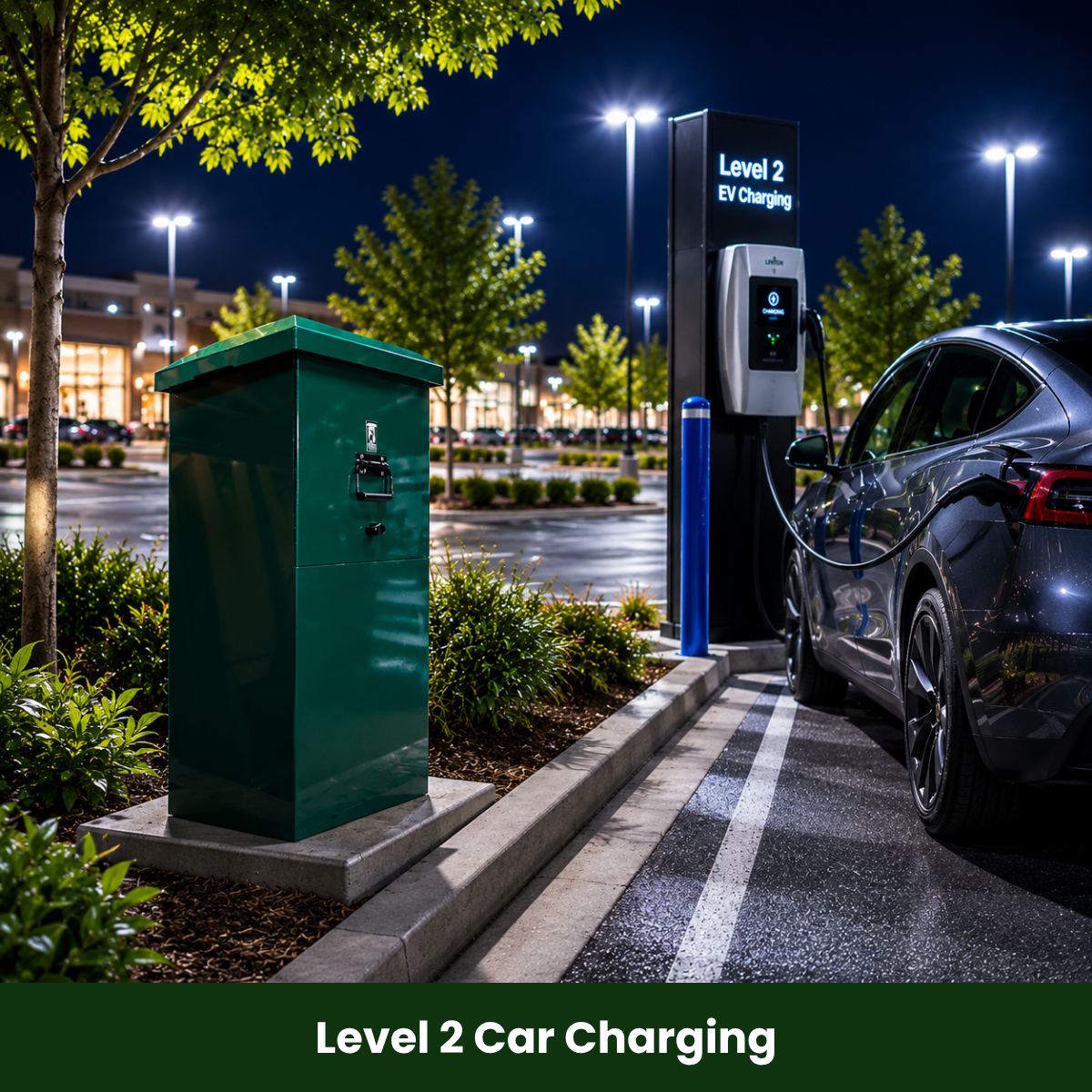

  • Electric Car Charging Power Distribution and Control, Metered

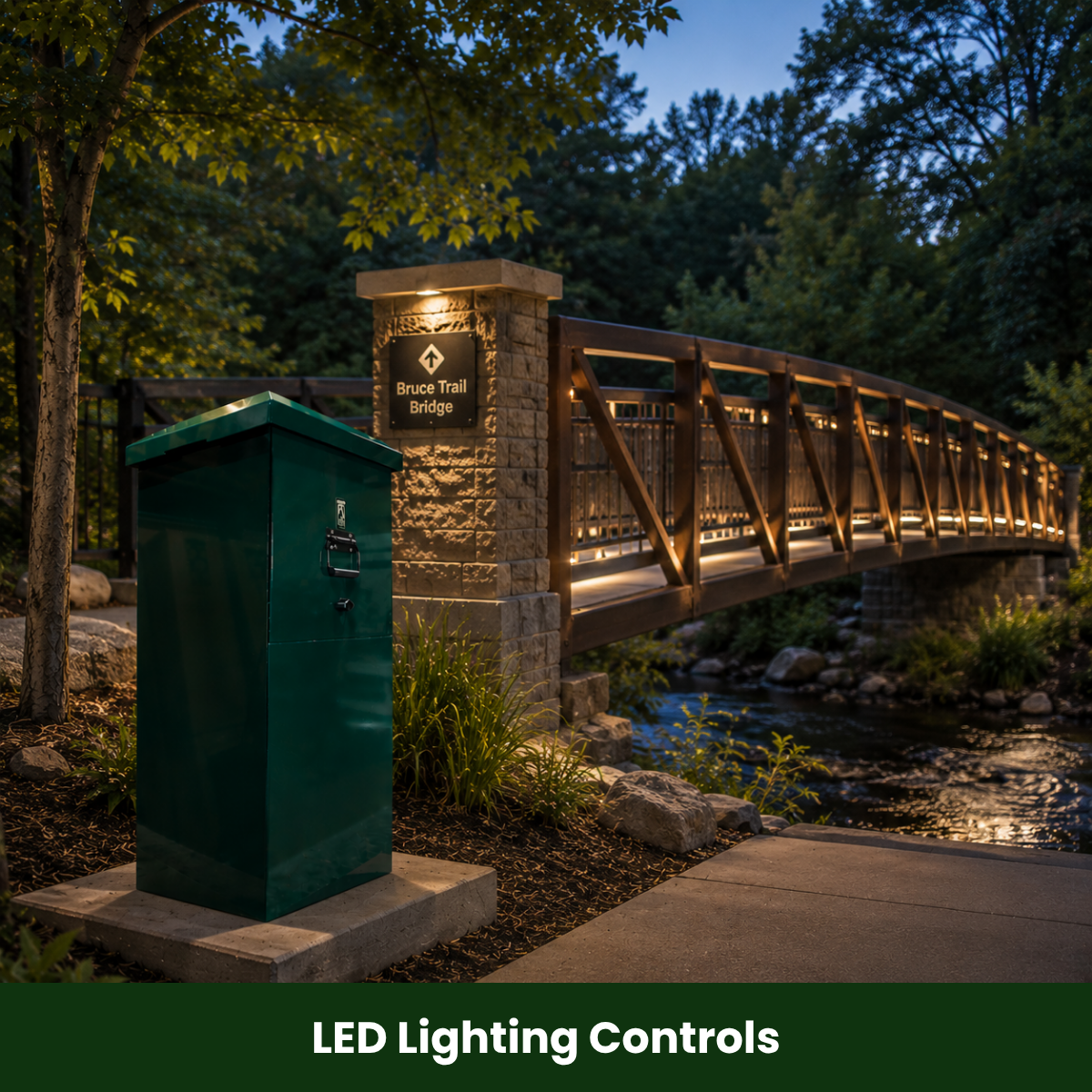

  • LED Lighting Controls, Metered

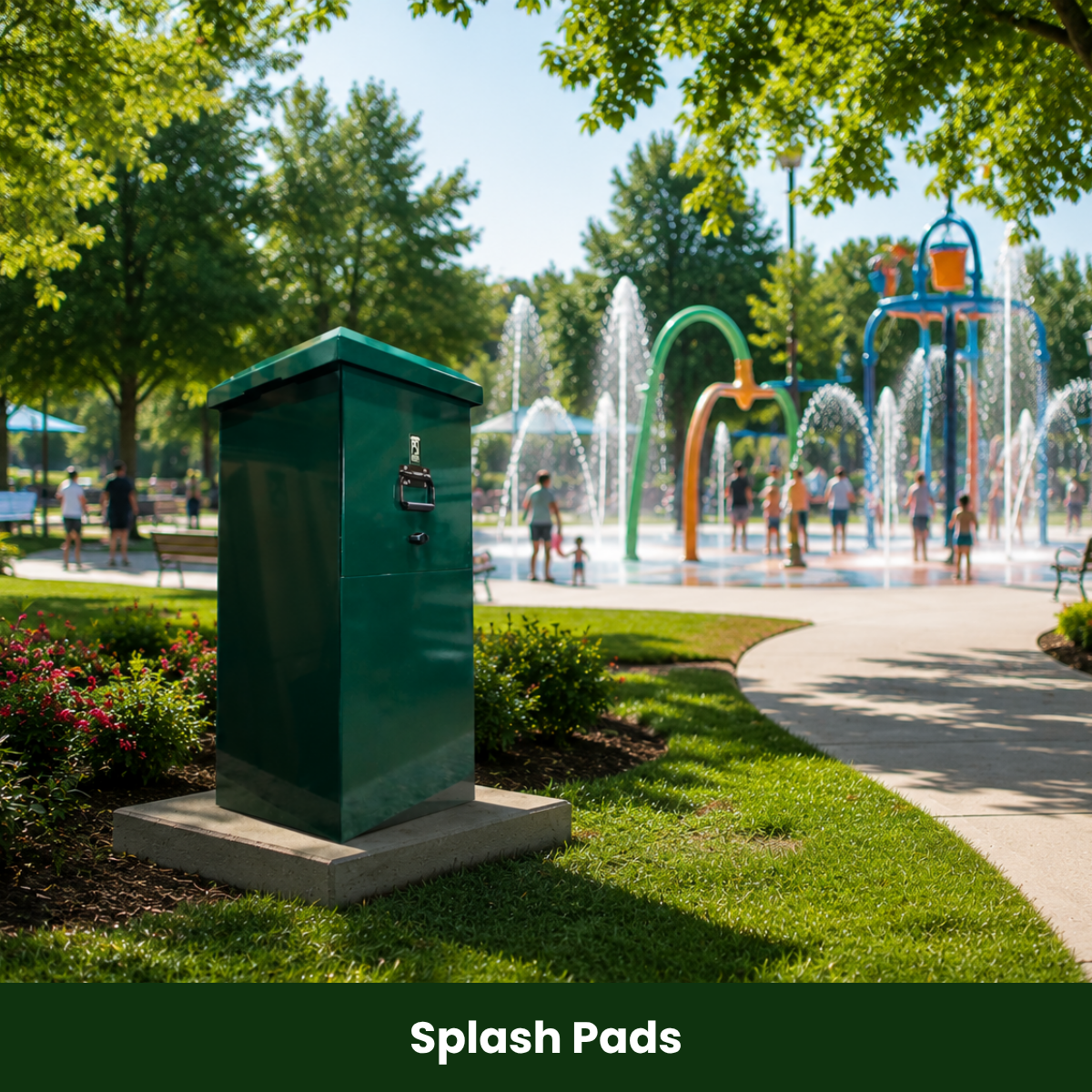

  • Parks Power Distribution and Control, Metered

  • Event Pedestal Power Distribution and Control, Metered
