SLM27

Metered Power Distribution Pedestals

Click Here for a PDF Cut Sheet.

Click Here for a PDF Drawing.

SLM27 Manual

MEASUREMENTS

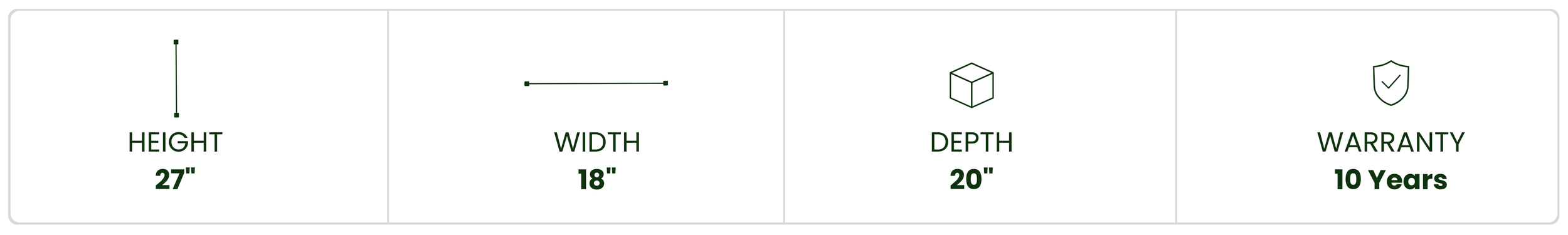

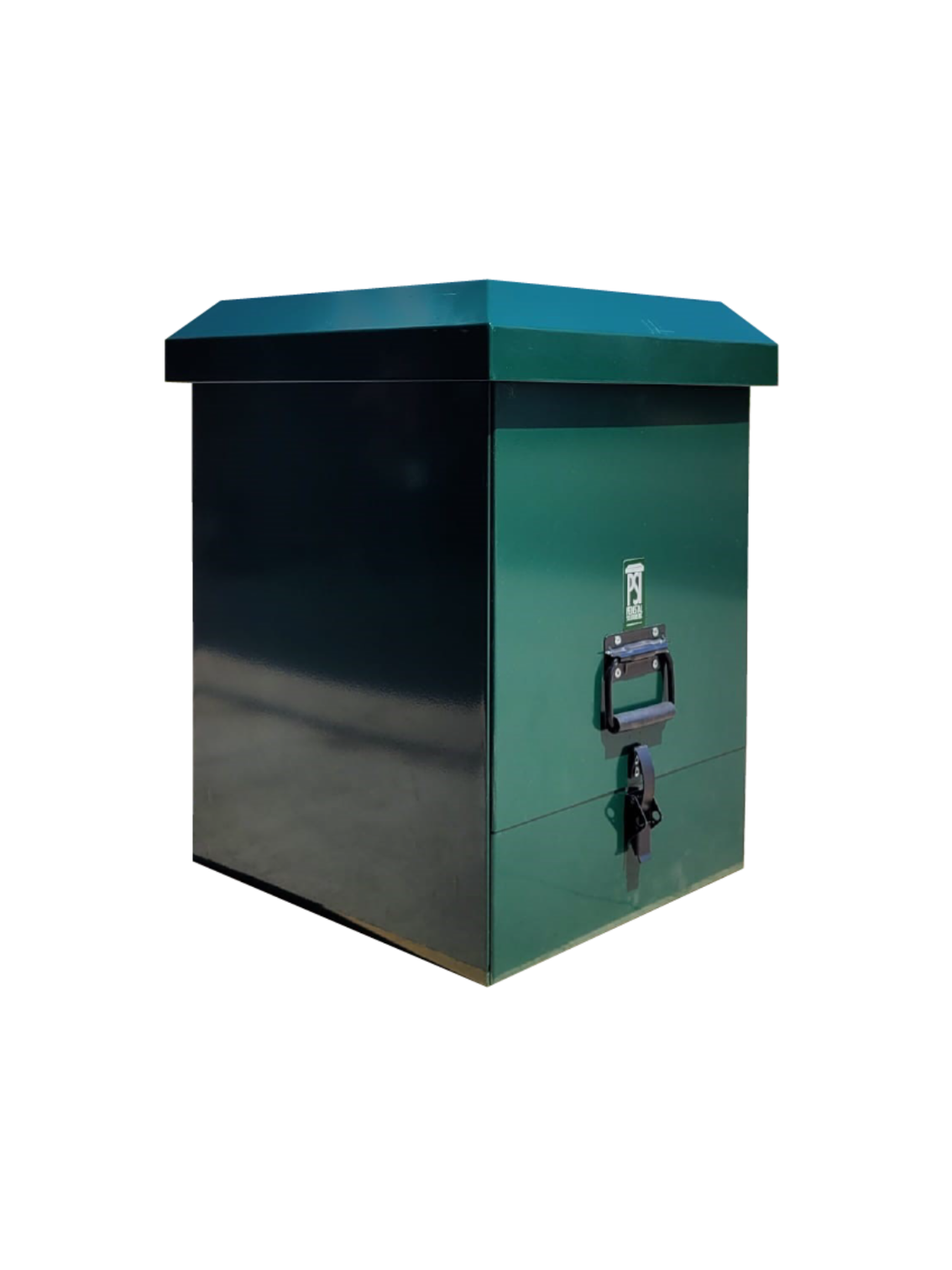

  • Pedestal Enclosure Sits 27’’ tall x 18’’ wide x 20’’ deep.

FEATURES

Typically included with a 12 cct. 120/240V Distribution panel with a 60A or 100A, 2 Pole main breaker and any combination of 1 and 2 pole load breakers required.

  • Pedestal Enclosure Sits 27’’ tall x 18’’ wide x 20’’ deep.

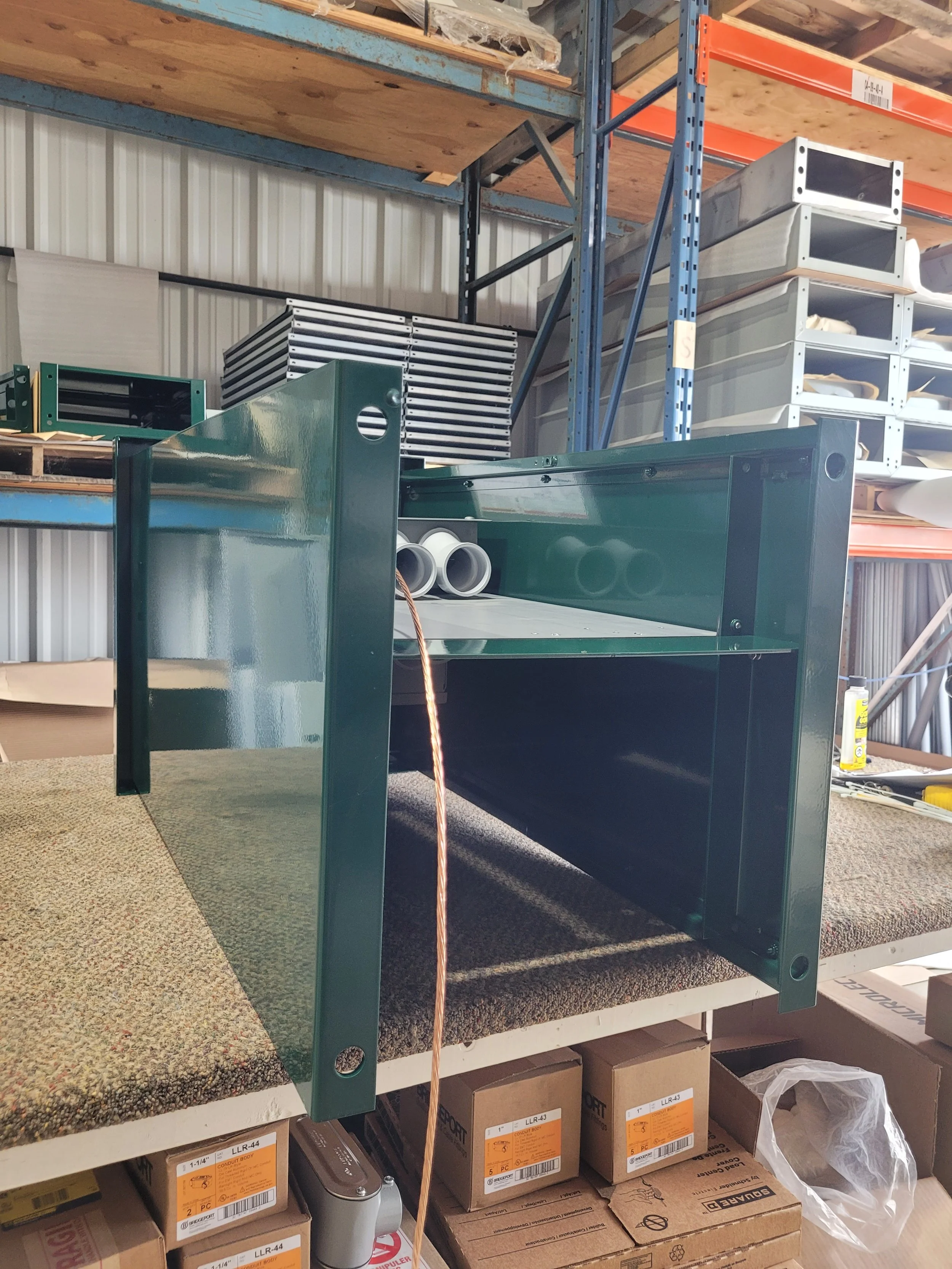

  • Complete with 2” PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

  • Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

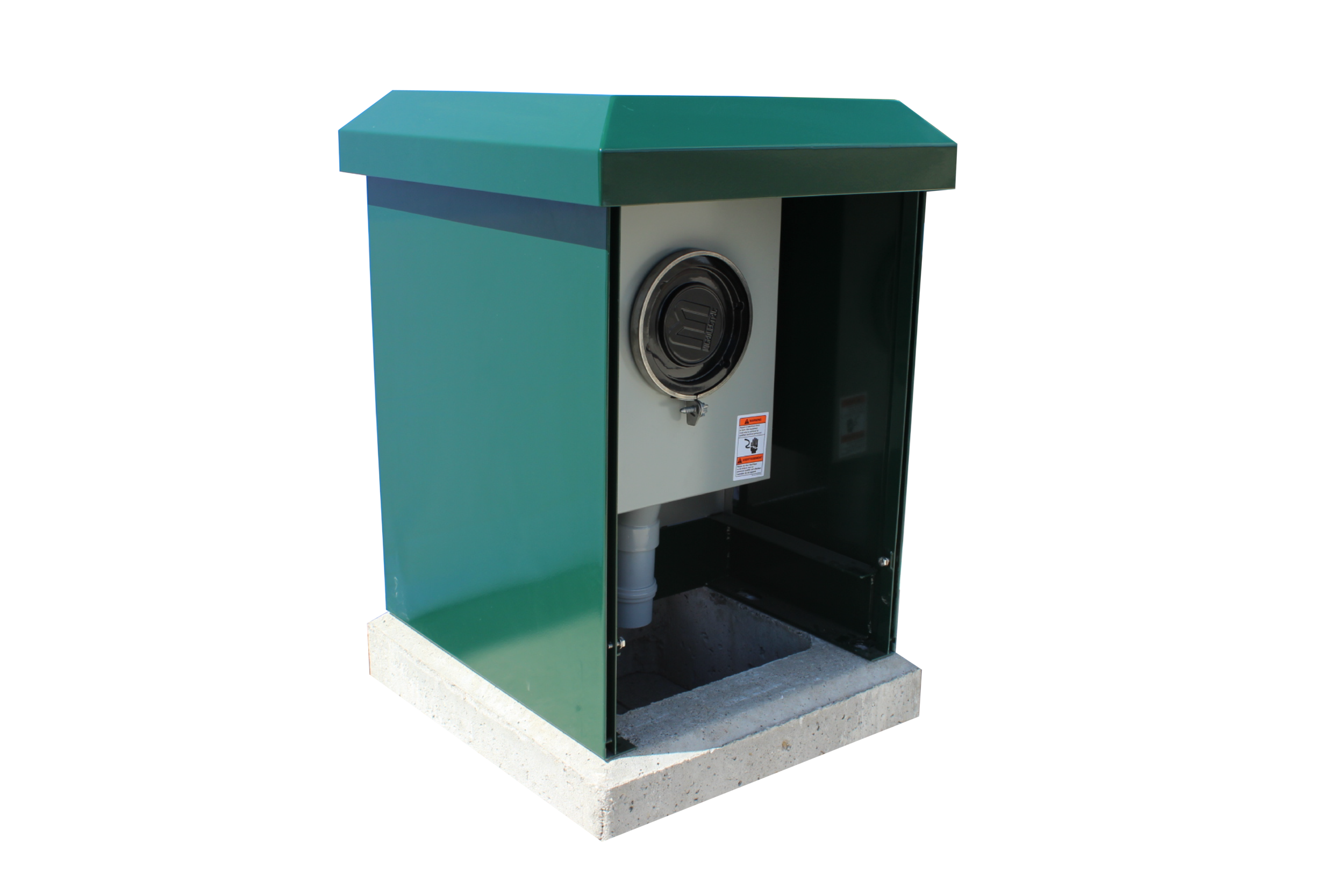

  • Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

CONSTRUCTION

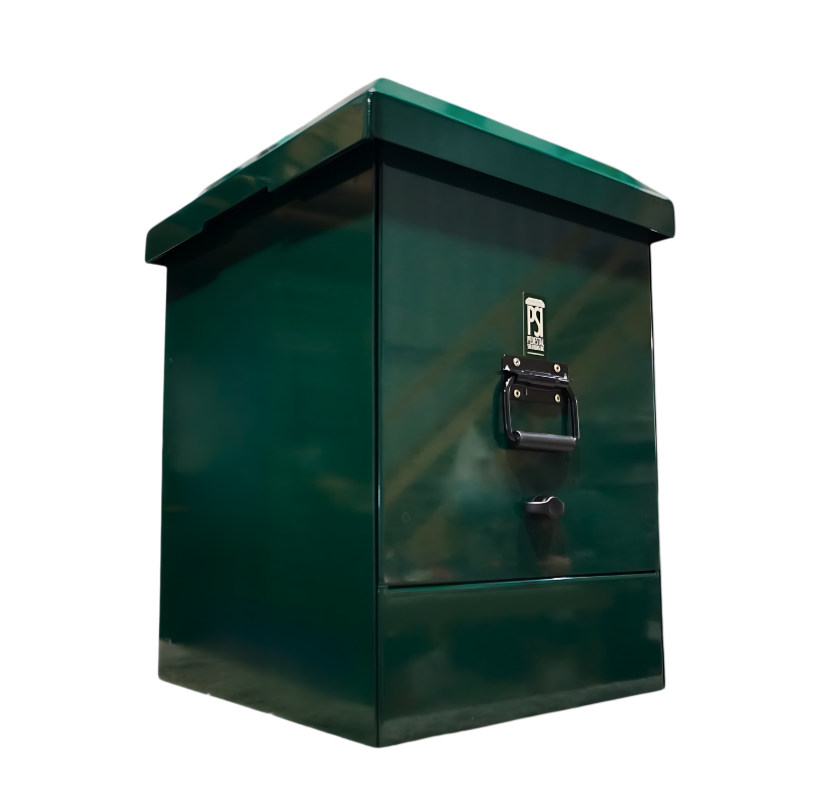

Constructed from heavy-gauge aluminum.

  • Electrostatic powder coated “Equipment Green” as standard.

  • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

  • Concealed Ventilation under lid to prevent condensation build-up.

  • Stainless Steel fasteners used to mount all internal and external components.

CUSTOMIZATION

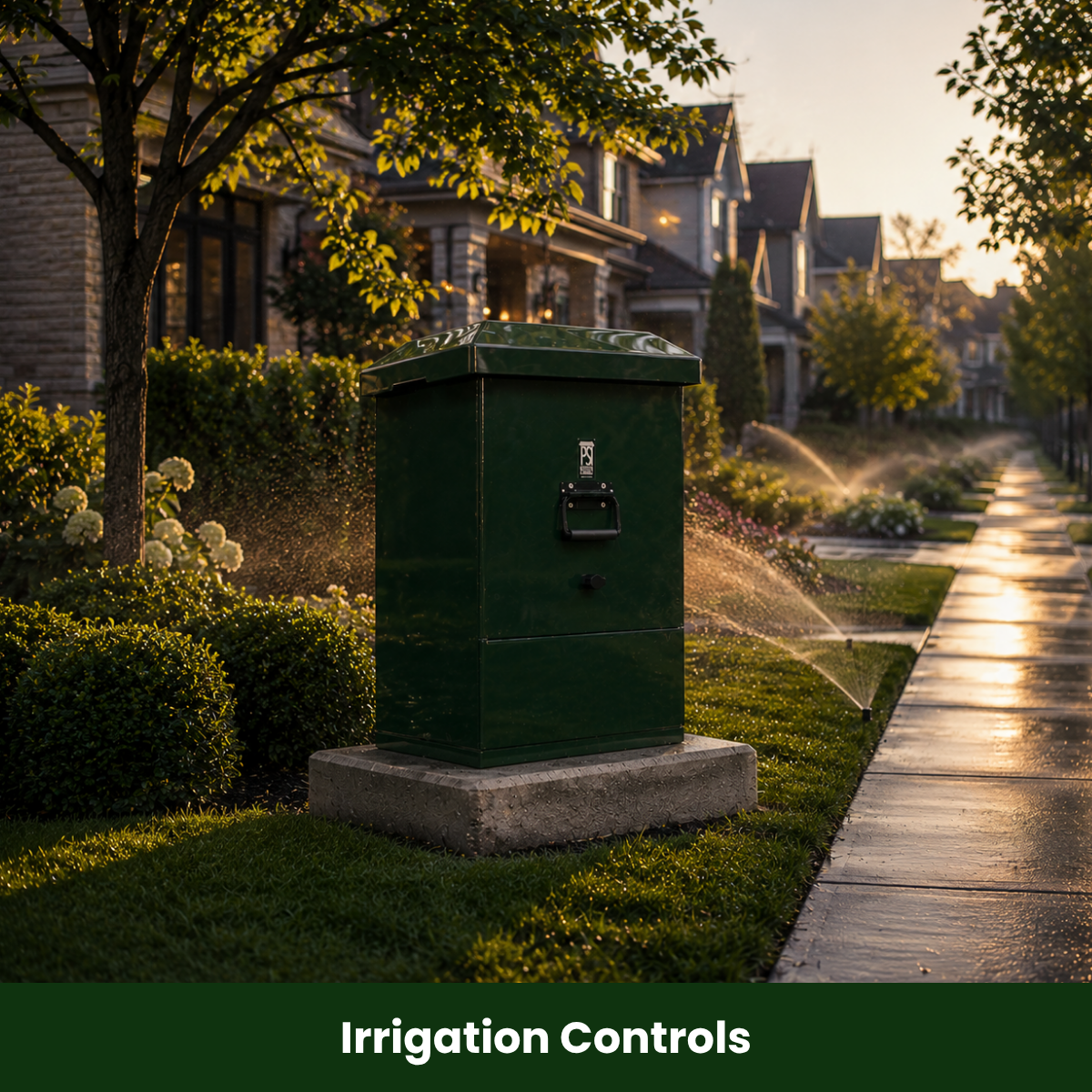

Can be designed to include timers, contractors, photocells etc. for any type of motor and lighting control.

  • Custom colours available

  • Also available in Galvanized or Stainless Steel construction

TYPICAL USES

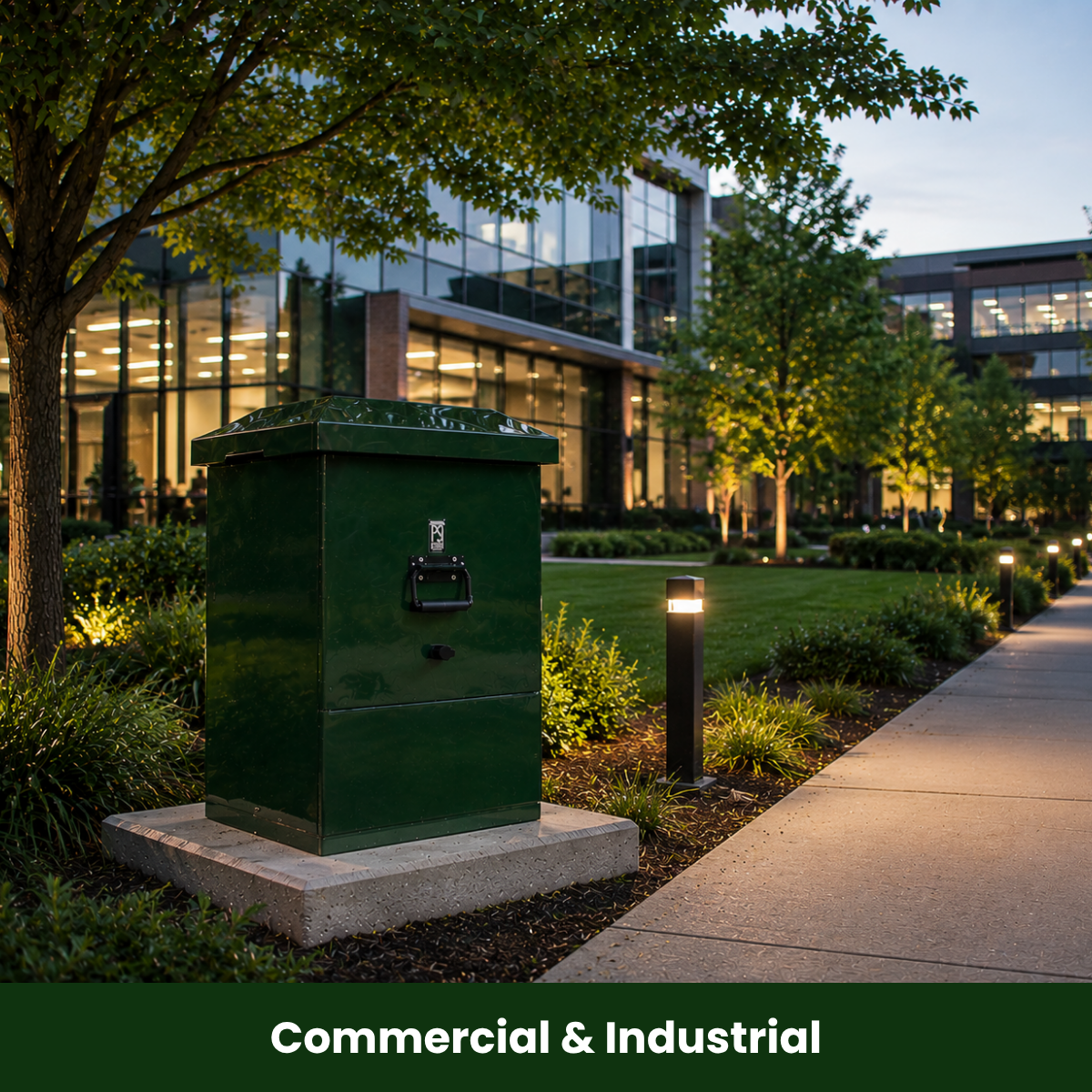

  • Commercial

  • Municipal

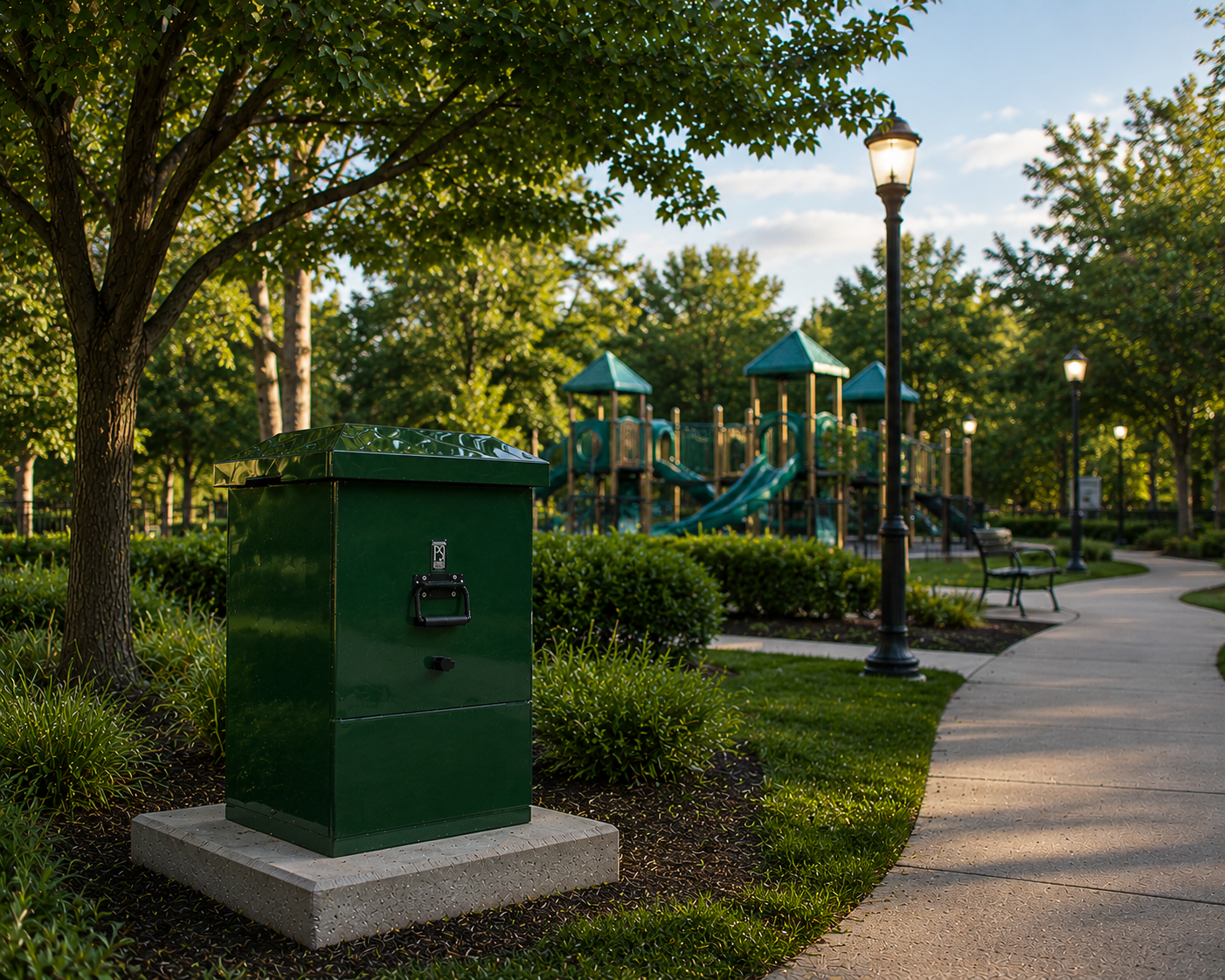

  • Park/Campground

  • Marina

  • Agricultural

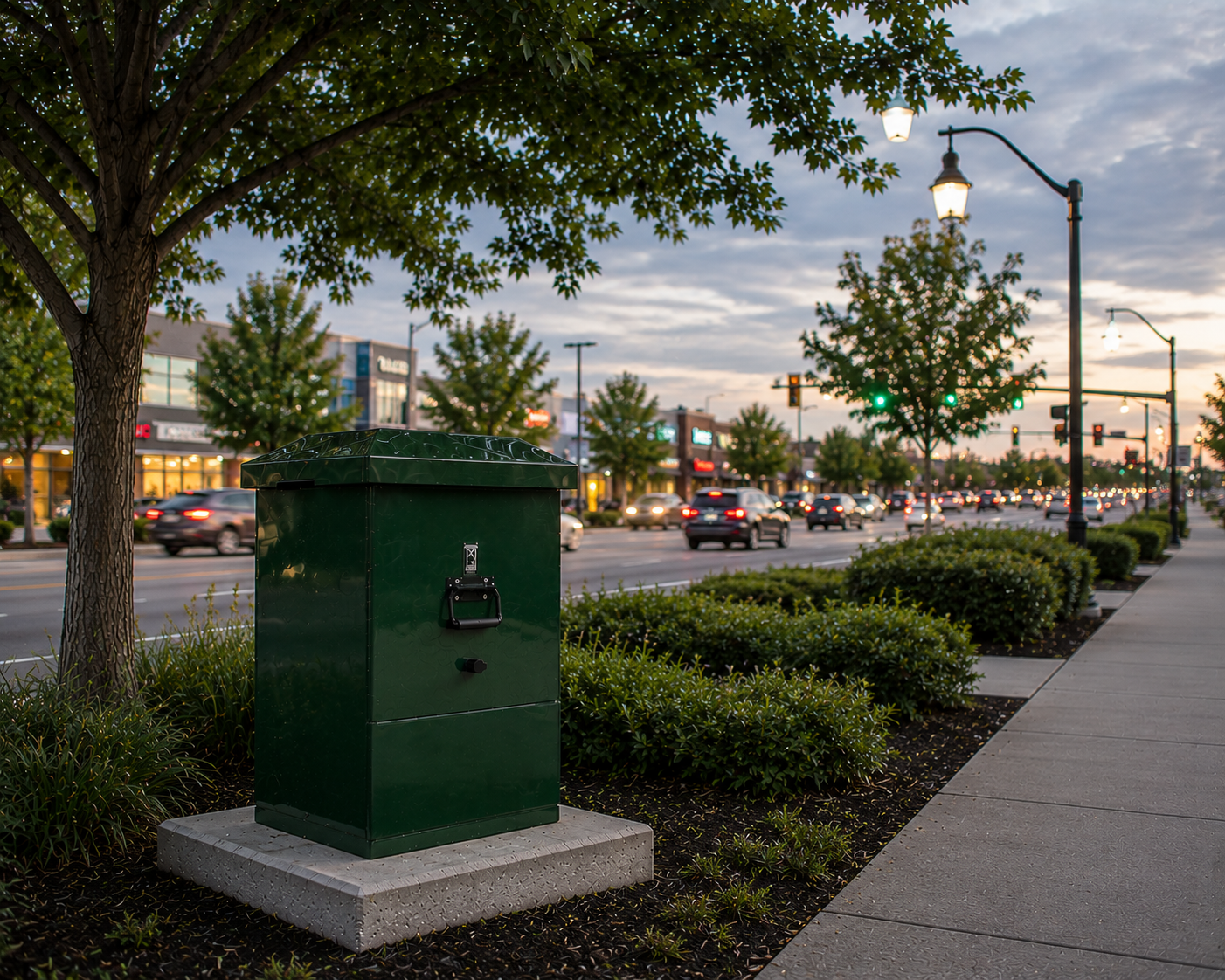

  • Street Lighting Power Distribution Metered

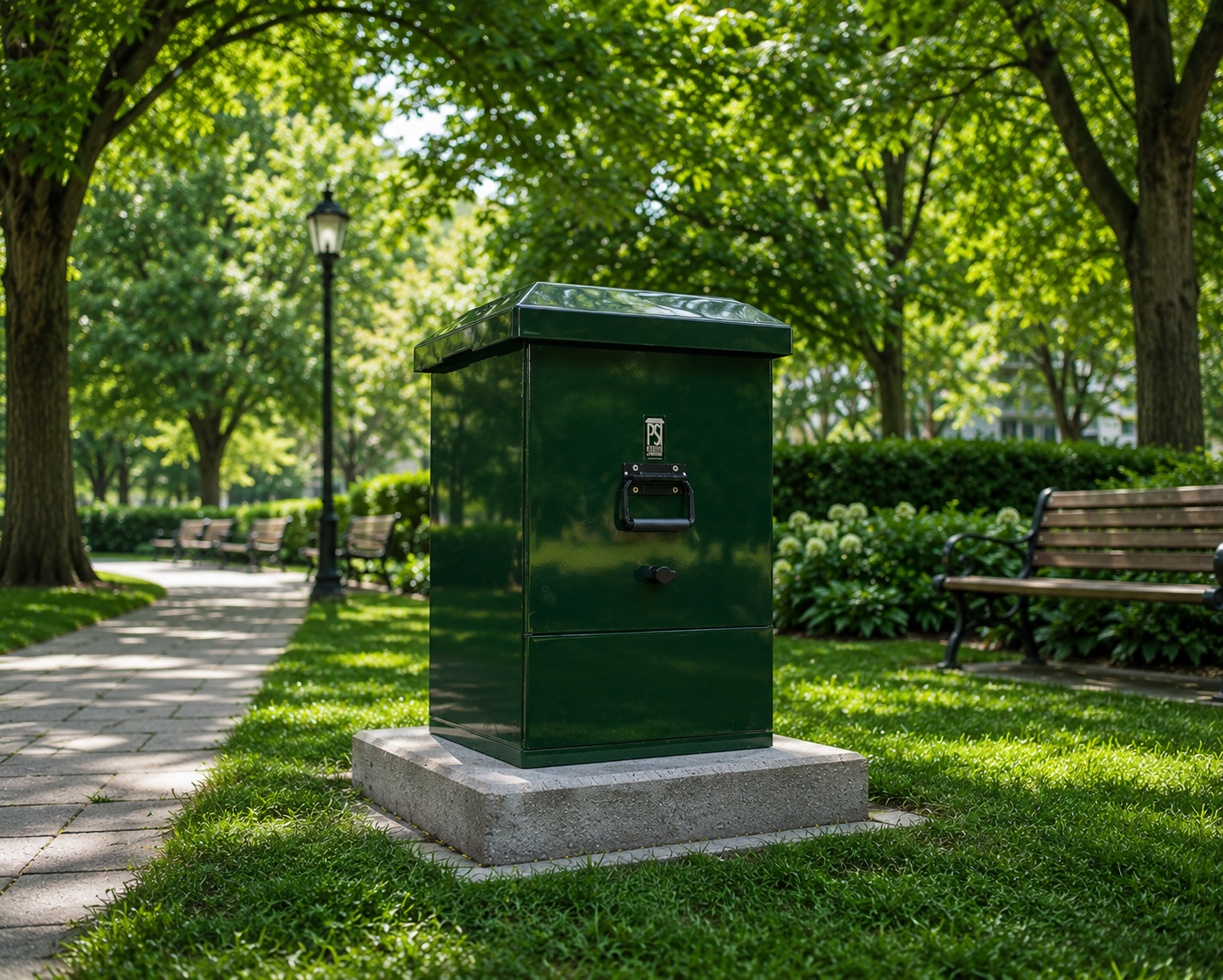

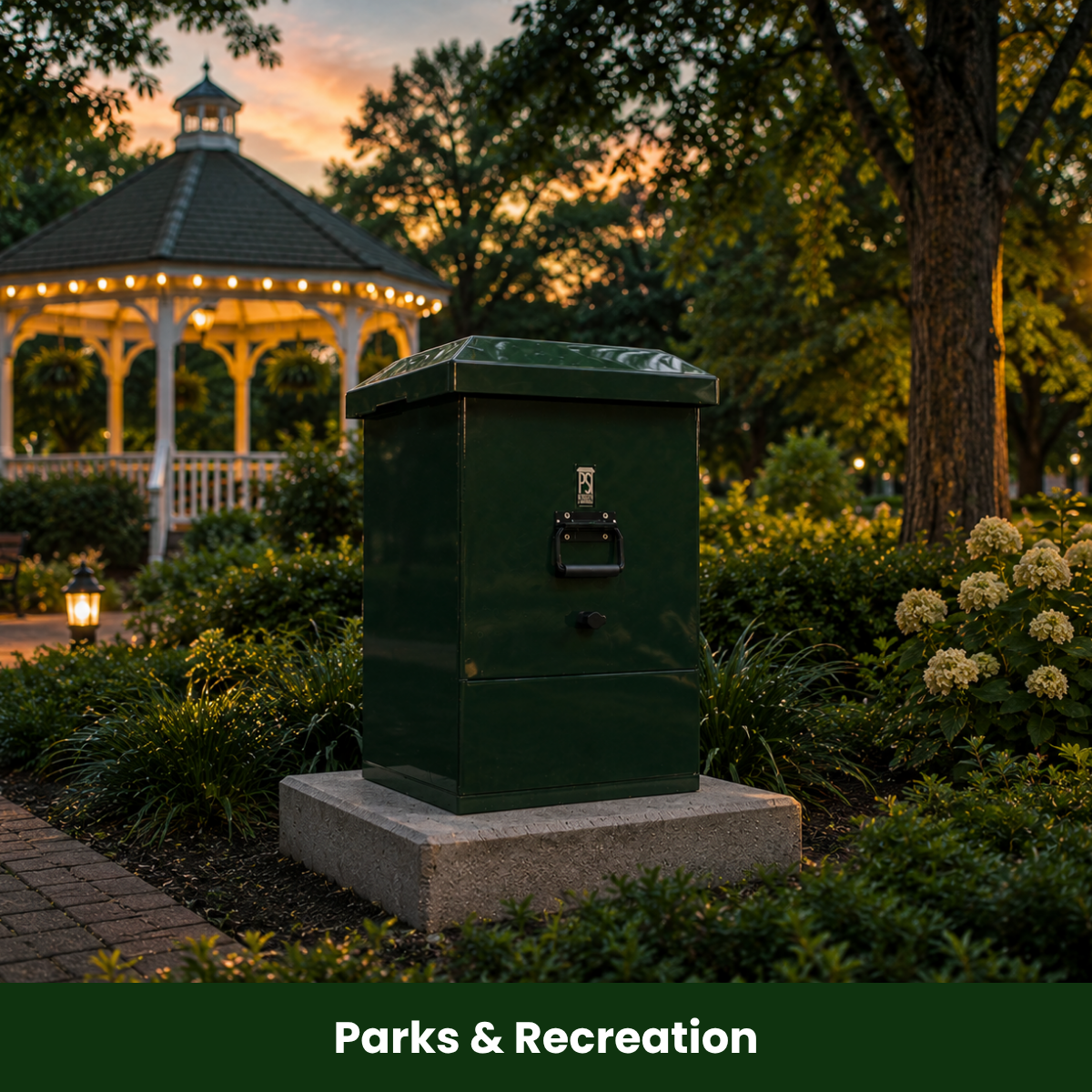

  • Parks Power Distribution Metered

  • Electric Car Charging Power Distribution Metered

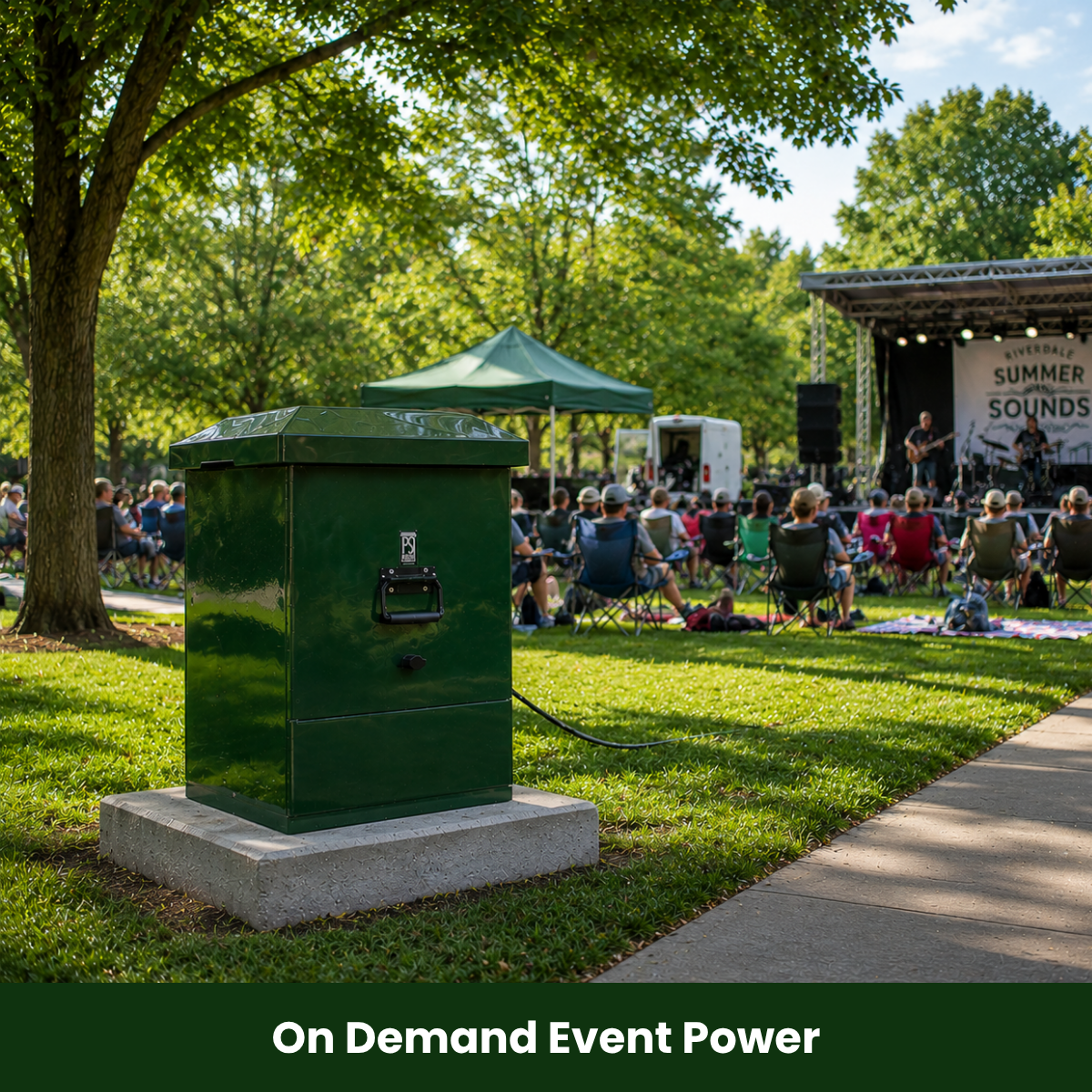

  • Event Pedestal Power Distribution Metered
