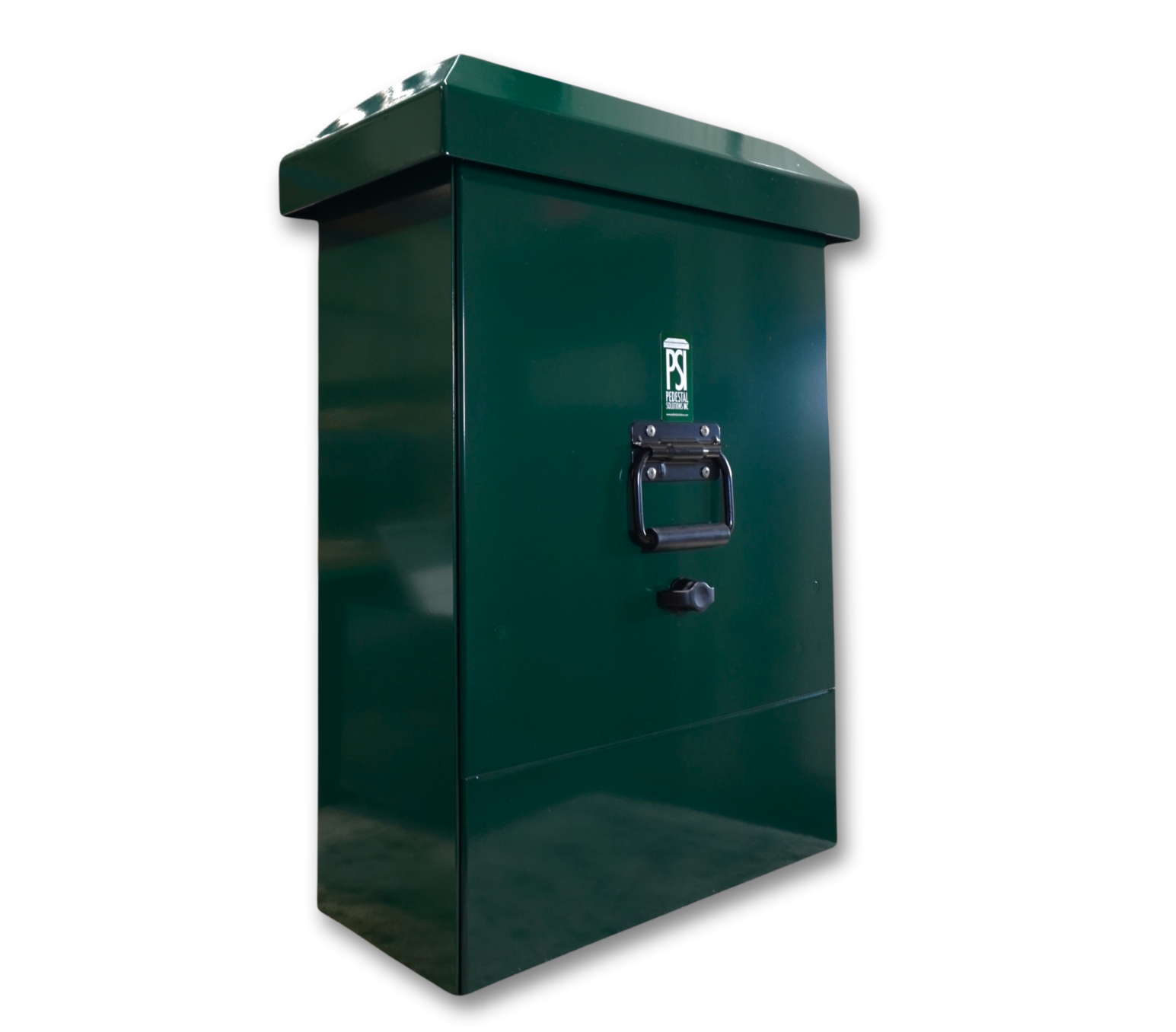

Model : SLS

Unmetered Power Distribution Pedestal

Measurements:

  • Height - 27”

  • Width - 18”

  • Depth - 8”

Typically included with a 12 cct. 120/240V Distribution panel with a 60A or 100A, 2 Pole main breaker and any combination of 1 and 2 pole load breakers required. Constructed from heavy-gauge aluminum, this enclosure is electrostatically powder coated in standard “Equipment Green” for long-lasting durability and corrosion resistance.

  • Complete with 2” PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

  • Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

  • Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

    View Cutsheet

    • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

    • Concealed Ventilation under lid to prevent condensation build-up.

    • Stainless Steel fasteners used to mount all internal and external components.

    • Commercial

    • Municipal

    • Park/Campground

    • Marina

    • Agricultural

    • Street Lighting Power Distribution

    • Parks Power Distribution

    • Electric Car Charging Power Distribution

    • Event Pedestal Power Distribution

Get A Quote

Get Our Catalog

Completely Free

Get Our Catalog Completely Free

Part Number Breakdown

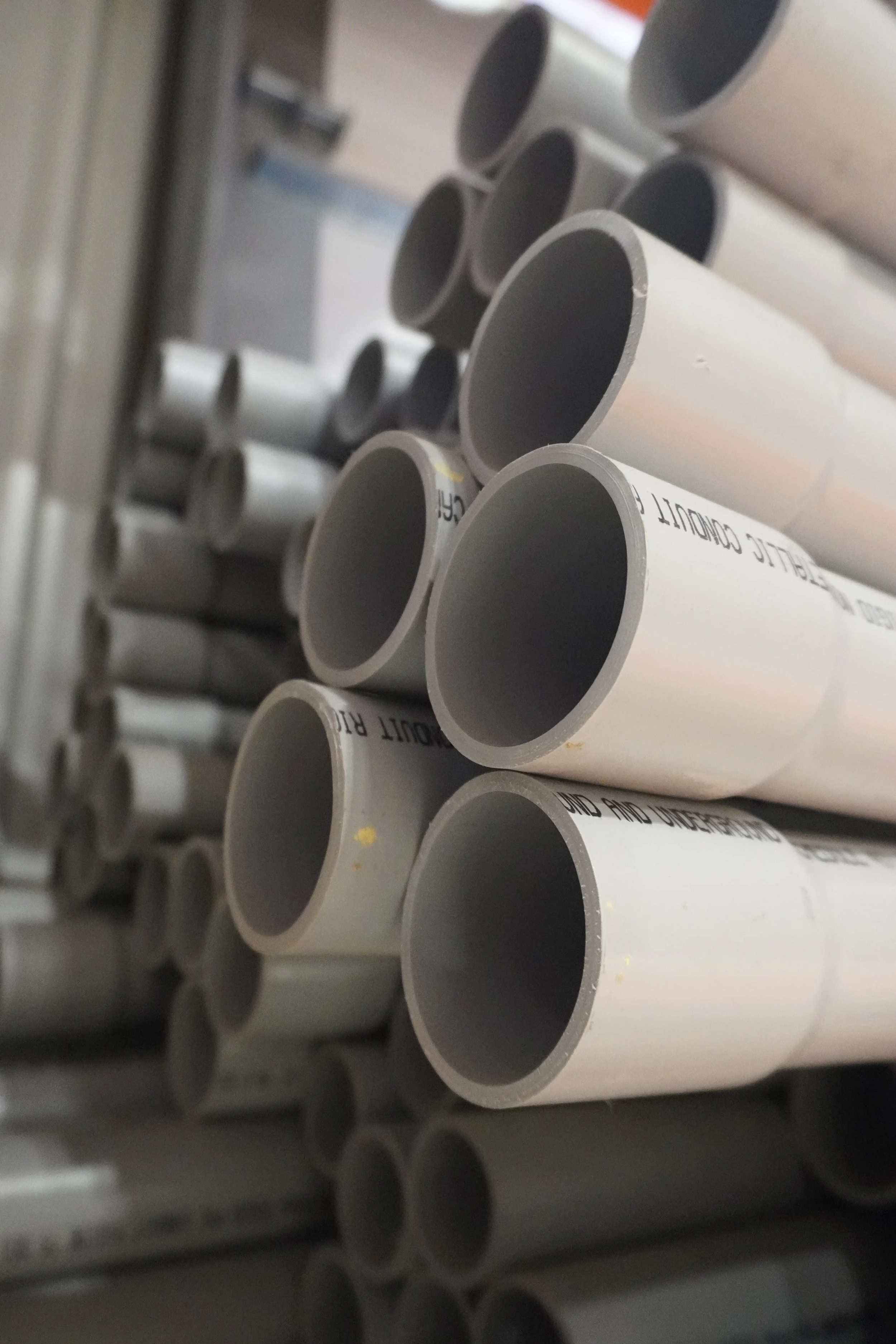

2” PVC Conduit for incoming feed

Product Resources
Get Your Part Number

Construction

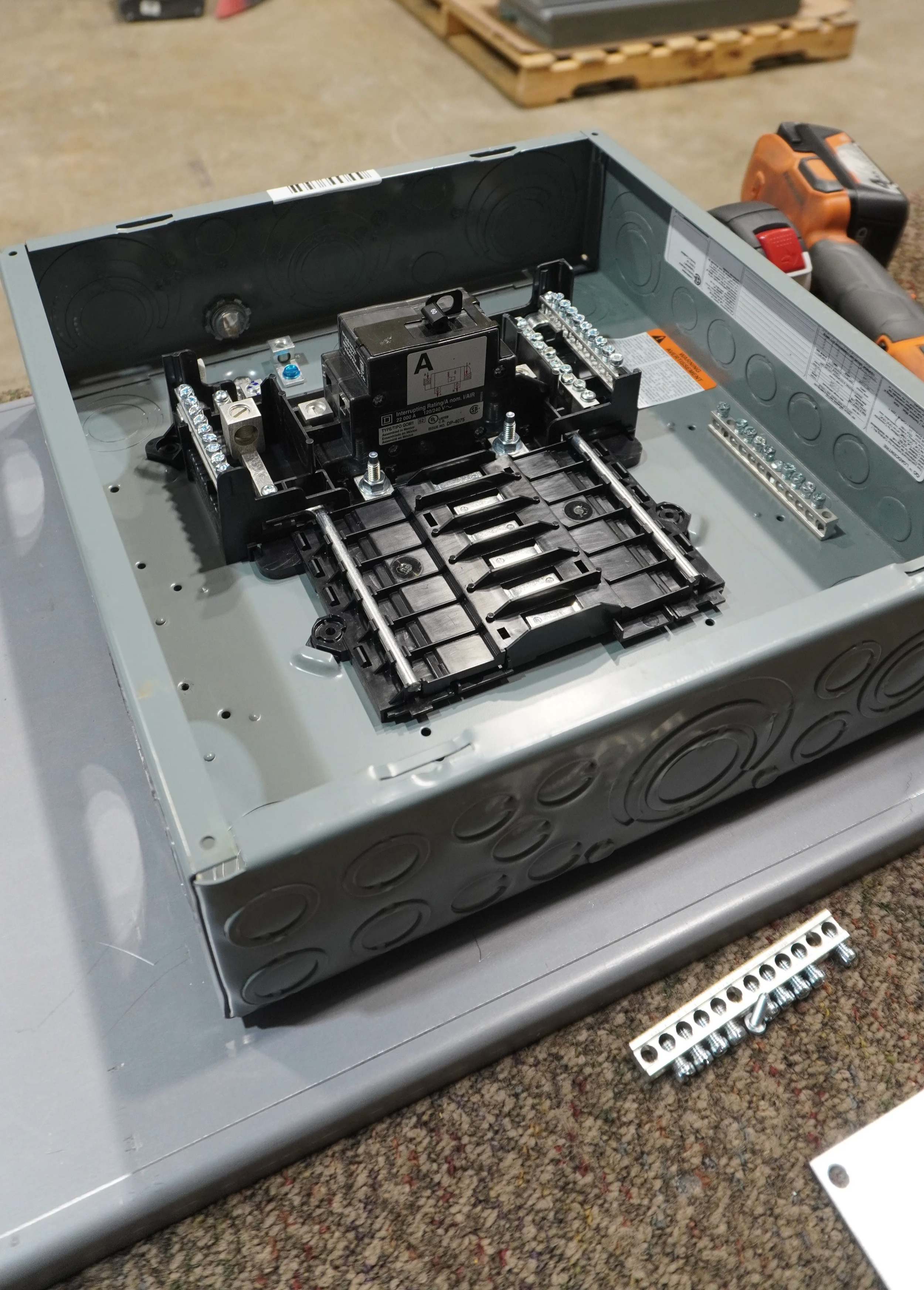

Square Breaker Panel

Square D 12 Cct. breaker panel with 60 or 100 A main breaker

Model: SLS
Example Part Number: SLS1-4-40(100)
SLS – Model SLS 27” unmetered pedestal
1 - Number of poles for first group of load breakers
4 - Quantity of load breakers
40 - Size of load breakers
100 – Size of main breaker

Our enclosures can be custom designed to include a wide range of electrical components such as:

  • Timers

  • Contactors

  • Photocells

  • Other control devices for virtually any motor or lighting control application.

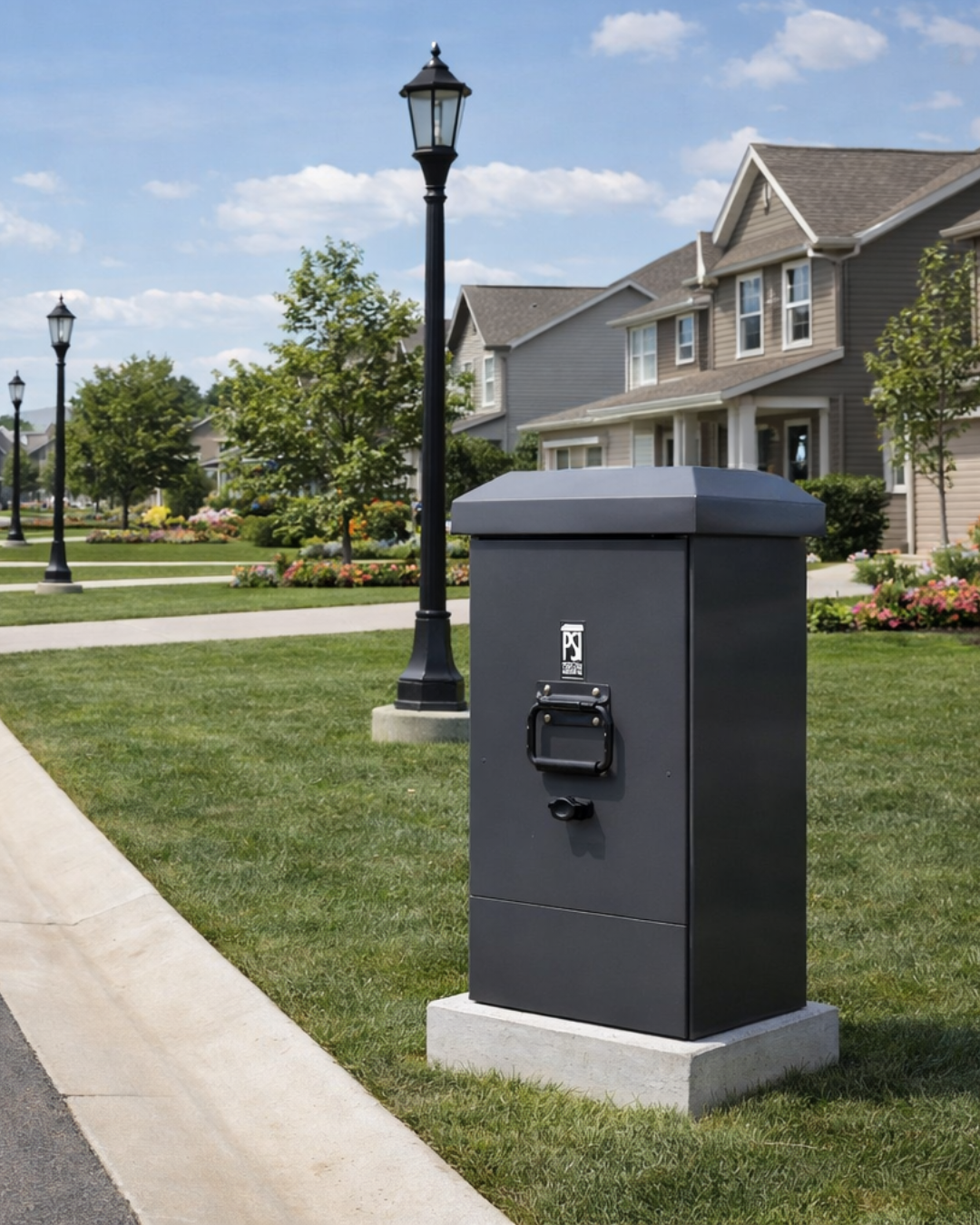

Each unit can be configured to meet specific project requirements, with custom colour options available to match municipal standards. Enclosures are also available in galvanized or stainless steel for enhanced corrosion resistance in demanding environments.

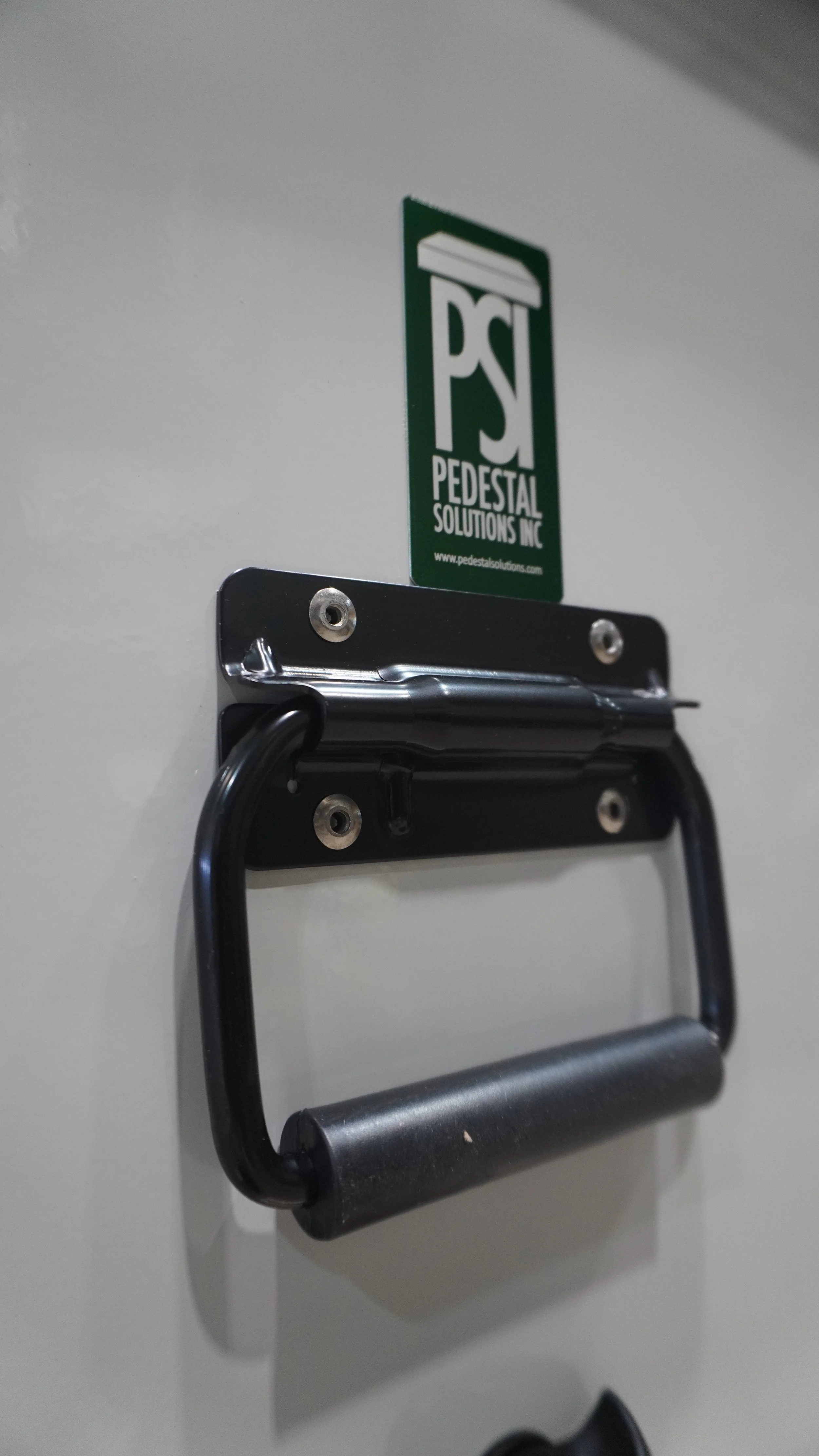

Stainless Steel Spring Handle, powder coated black

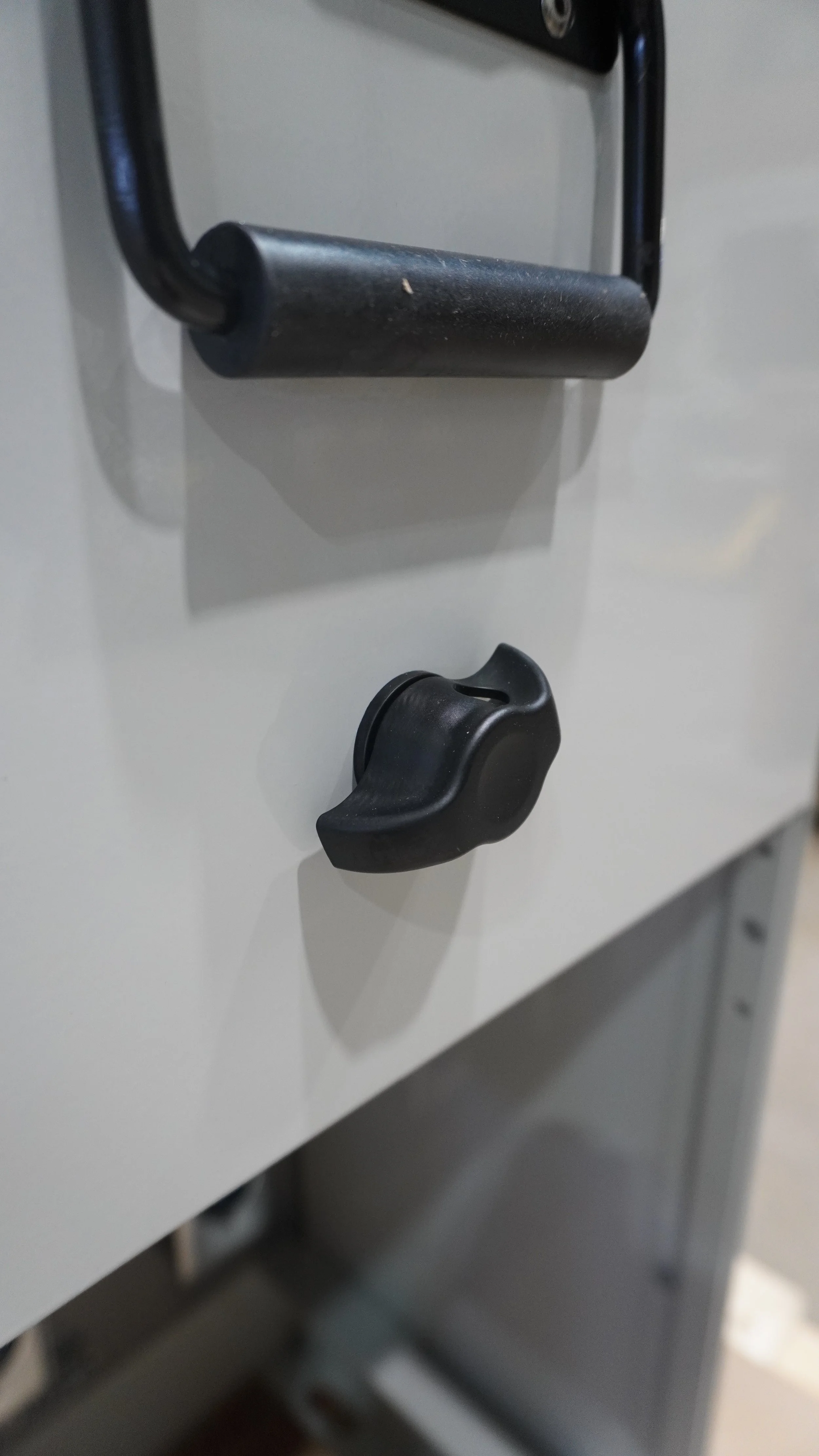

Locking wing handle rotating latch with two point locking system

Customization

Electrostatic powder coated “Equipment Green” as standard but custom colours are available.

Frequently Asked Questions

  • All of our products are sold through utility distributors. If you need any technical information about our products, we can certainly help, but pricing and purchasing is done through our amazing distributors.

  • Standard products ship within 2-6 weeks from approval. Custom units depend on the required components but typically 6-10 weeks from approvals.

  • Click below to learn all about our standard and custom units.
