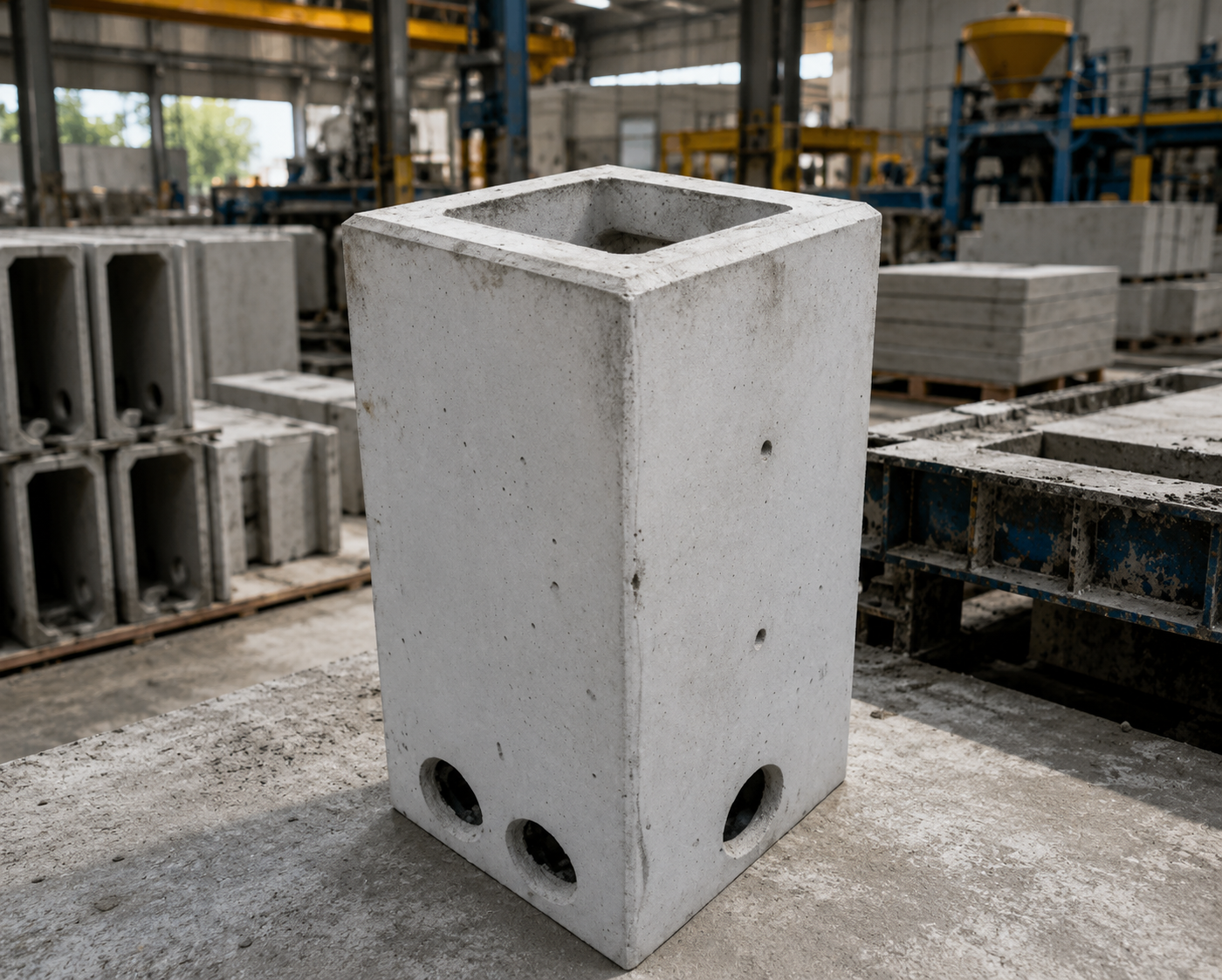

UNDERSTANDING OUR BASES

• There are several precast manufacturers who make our bases. Contact us, and we will select the one closest to your project.

• Below is a breakdown of each of our Models and the correct base dimension to order.

• FEATURES

  • No forming, and pouring concrete onsite. No down time / Big savings.

  • Concrete Bases specifically designed to match up with PSI Pedestals.

  • Knockouts and Open bottom allow for a wide range of cable/conduit runs.

  • As a standard 42’’ Deep, getting below the frost line, preventing frost heave.

  • Large inventory of Concrete bases, allowing for minimal lead time.

CONSTRUCTION

• Concrete Properties: 4500 PSI (32 MPa) Min Strength 6-8% Air Entrainment

• Six (6) 1/2" N.C. Nylon threaded inserts

• Six (6) Cable entry PVC seals

• Four (4) 3/4’’ Through holes for lifting into place.
