LVTC42 - Low Voltage Termination Cabinet

Click Here for a PDF Cut Sheet.

Click Here for a PDF Drawing.

MEASUREMENTS

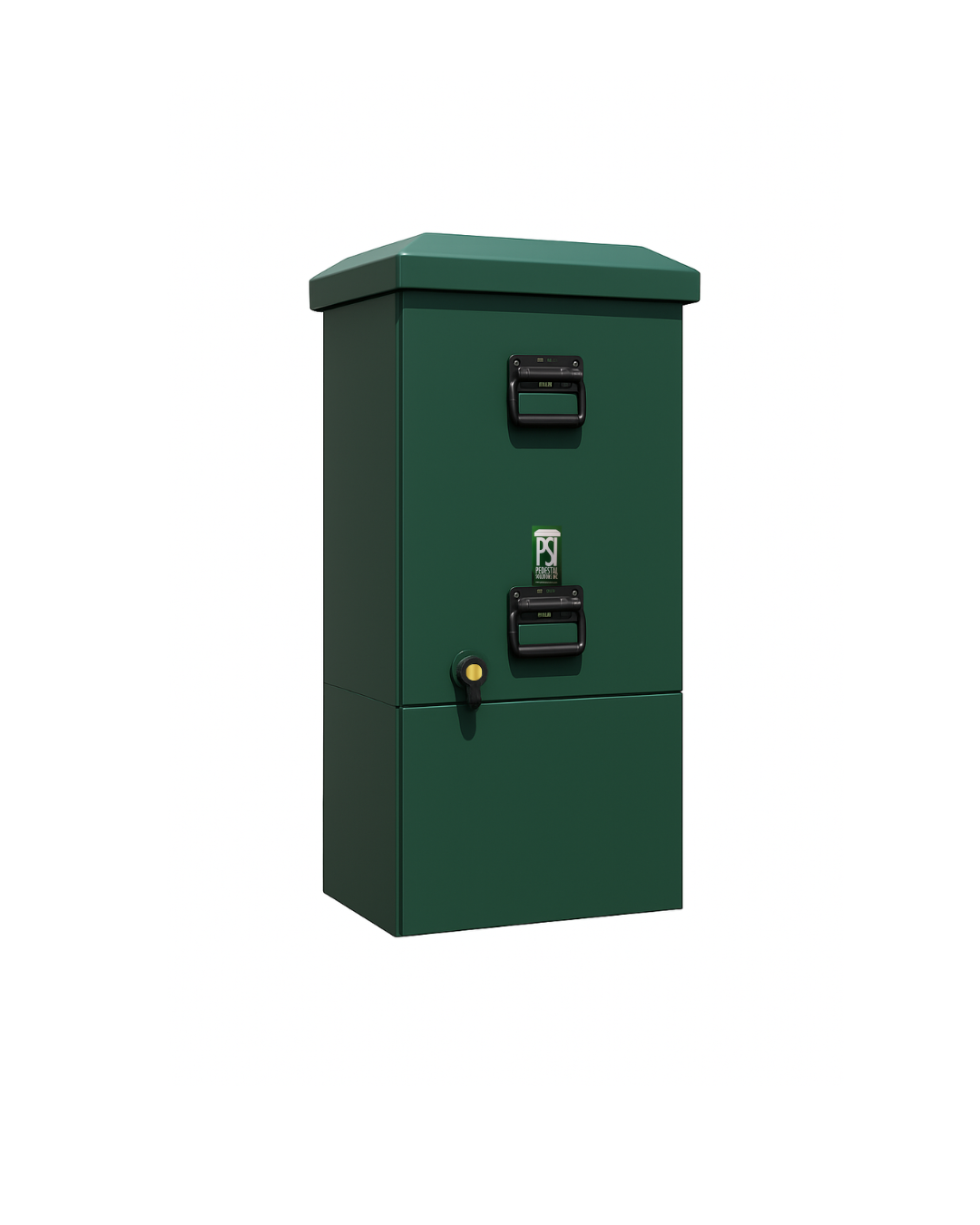

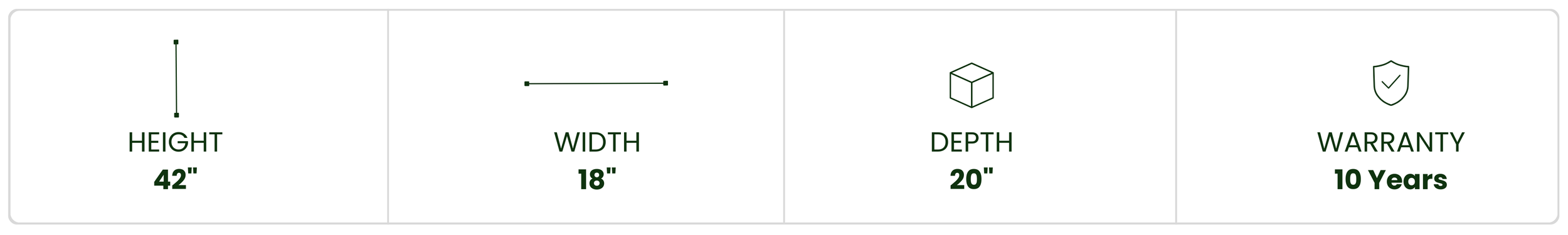

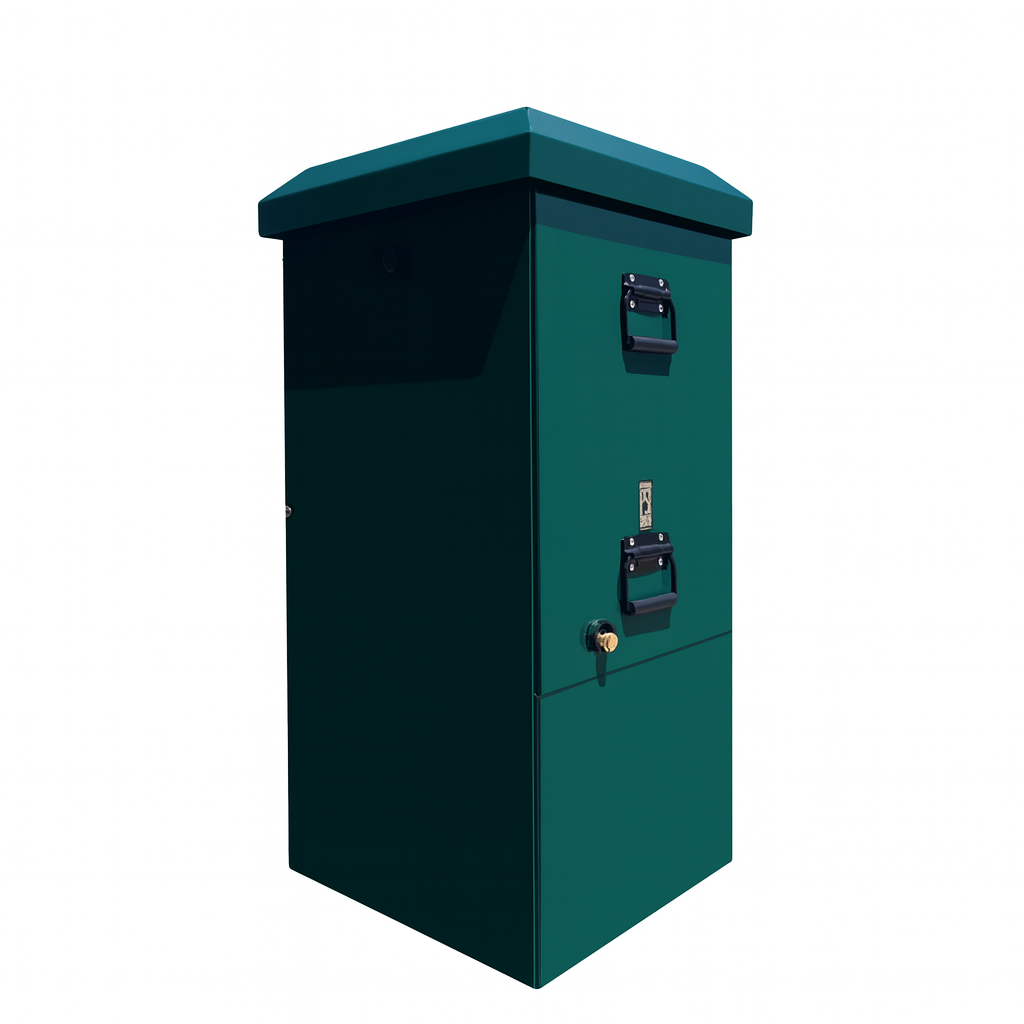

  • Pedestal Enclosure Sits 42’’ tall x ’’18 wide x 20’’ deep.

FEATURES

Available for 120-600VAC in both Single-Phase and Three-Phase configurations.

  • Designed to replace “flush to grade” junction boxes

  • Ideal for sub-divisions to increase the number of termination spots per transformer.

  • Lifting Eye Nuts provided on either side to allow for easy lifting with crane.

CONSTRUCTION

  • Constructed from heavy gauge galvanized steel and electrostatic powder coated “Equipment Green” as standard.

  • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

  • Concealed Ventilation under lid to prevent condensation build-up.

  • Lifting Eye Nuts provided on either side to allow for easy lifting with crane.

  • Stainless Steel fasteners used to mount all internal and external components.

  • Access door fastened with Penta Bolt and is also padlockable.

CUSTOMIZATION

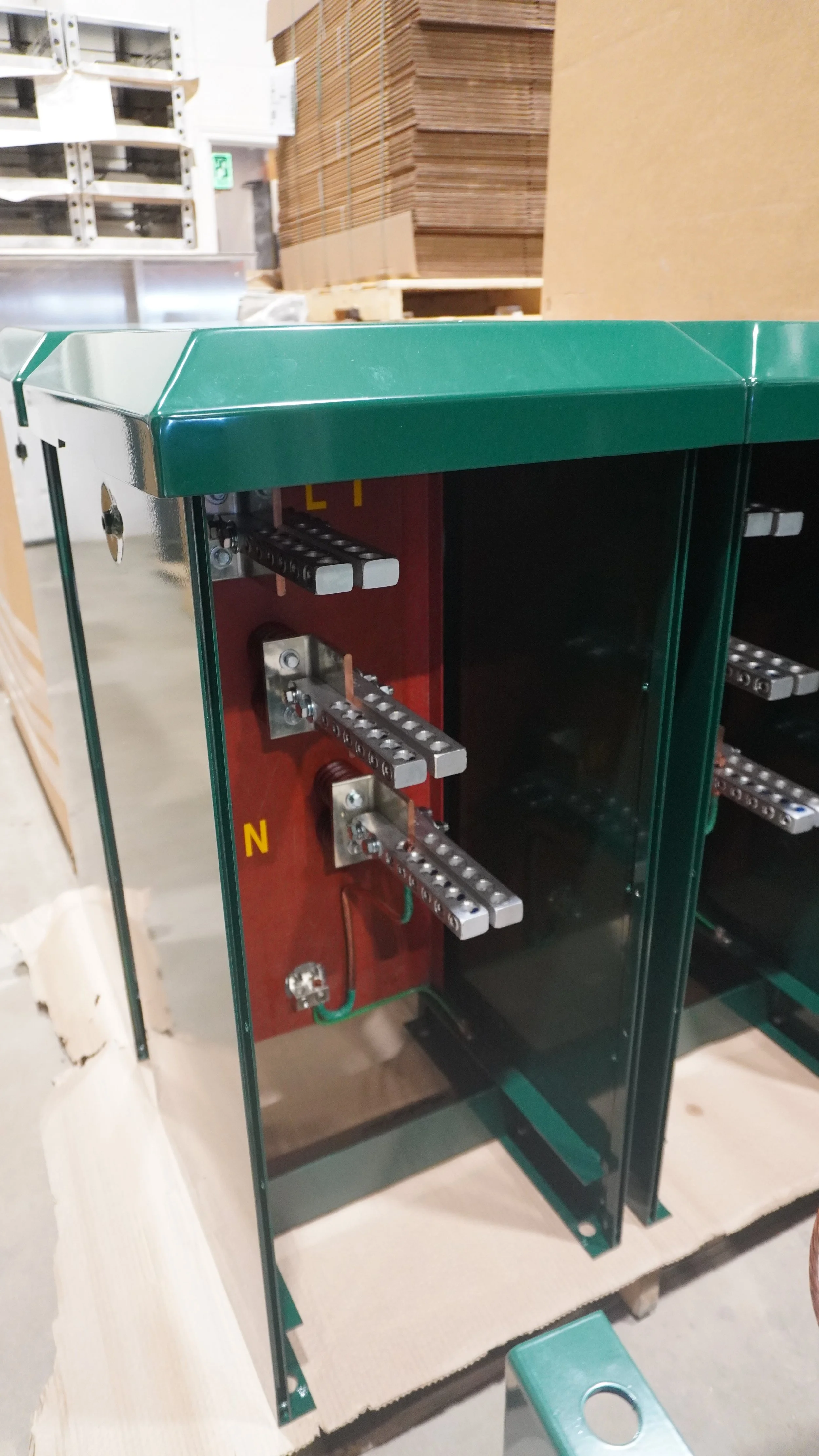

Tin plated, copper bus bars can be configured for a choice of conductor connection methods: holes drilled through the bus to bolt compression lugs crimped onto conductors OR provided with solderless lugs capable of handling 12 conductors per phase from #2AWG to 500MCM conductors.

  • Custom colours available

  • Also available in Aluminium or Stainless Steel construction

TYPICAL USES

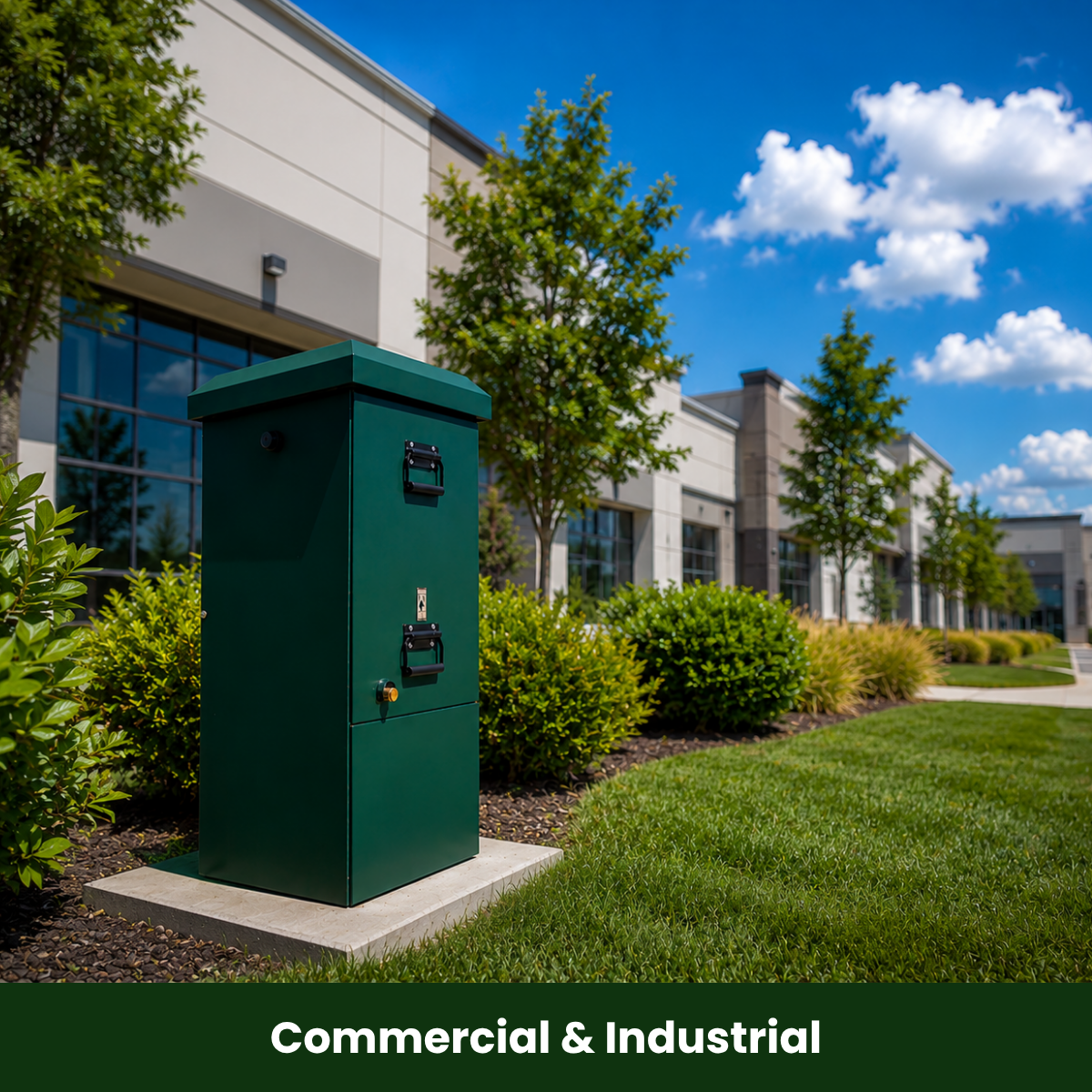

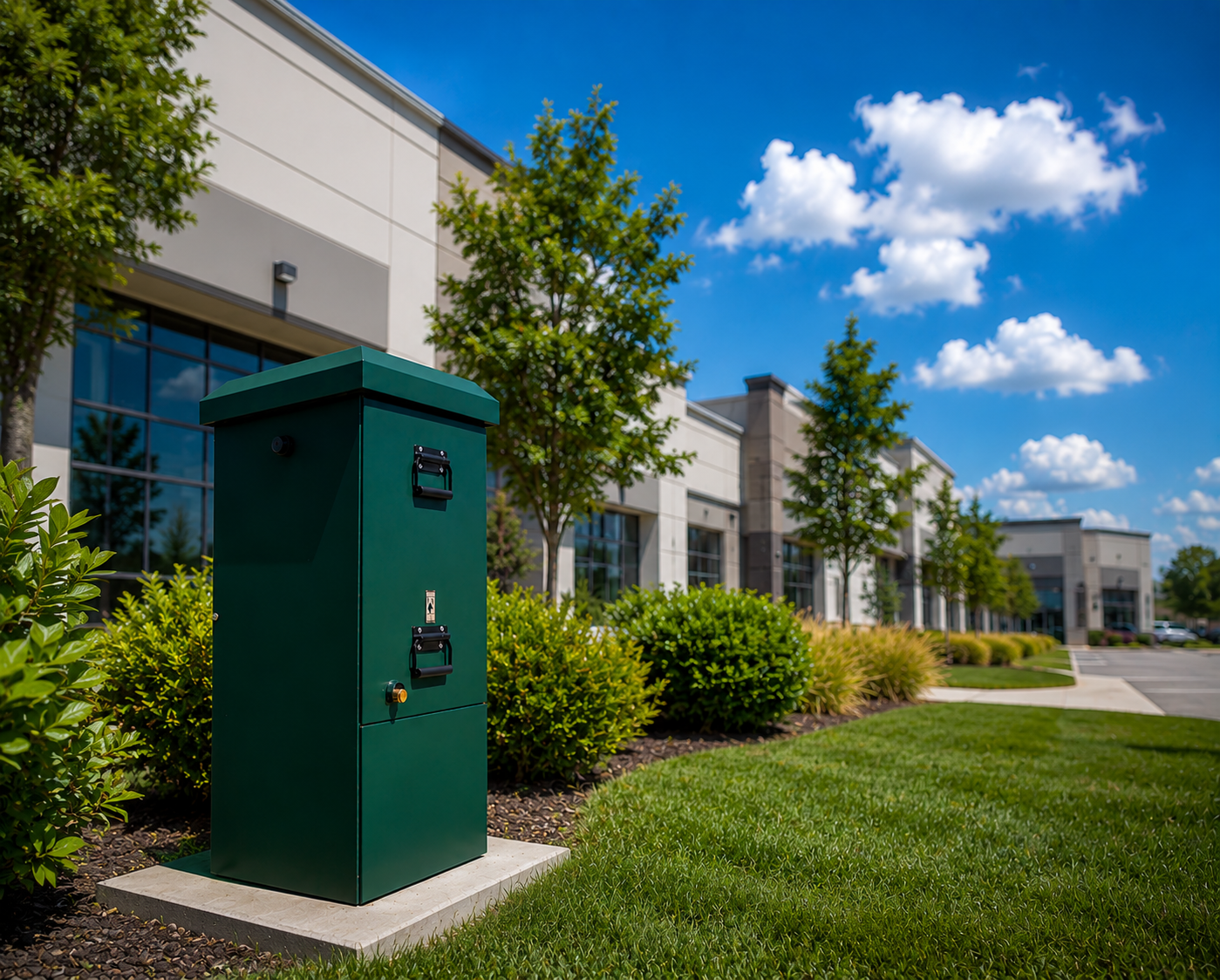

  • Commercial

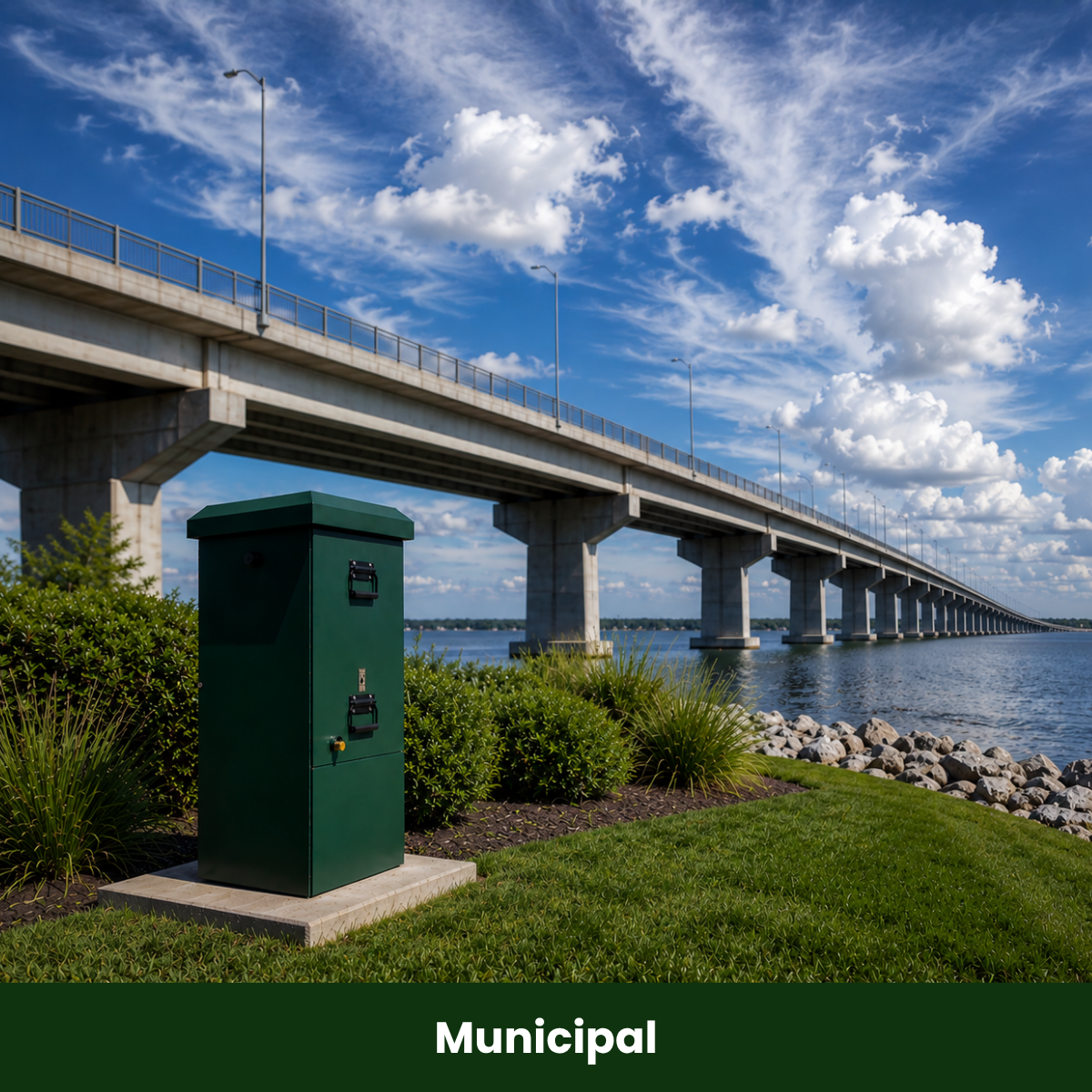

  • Municipal

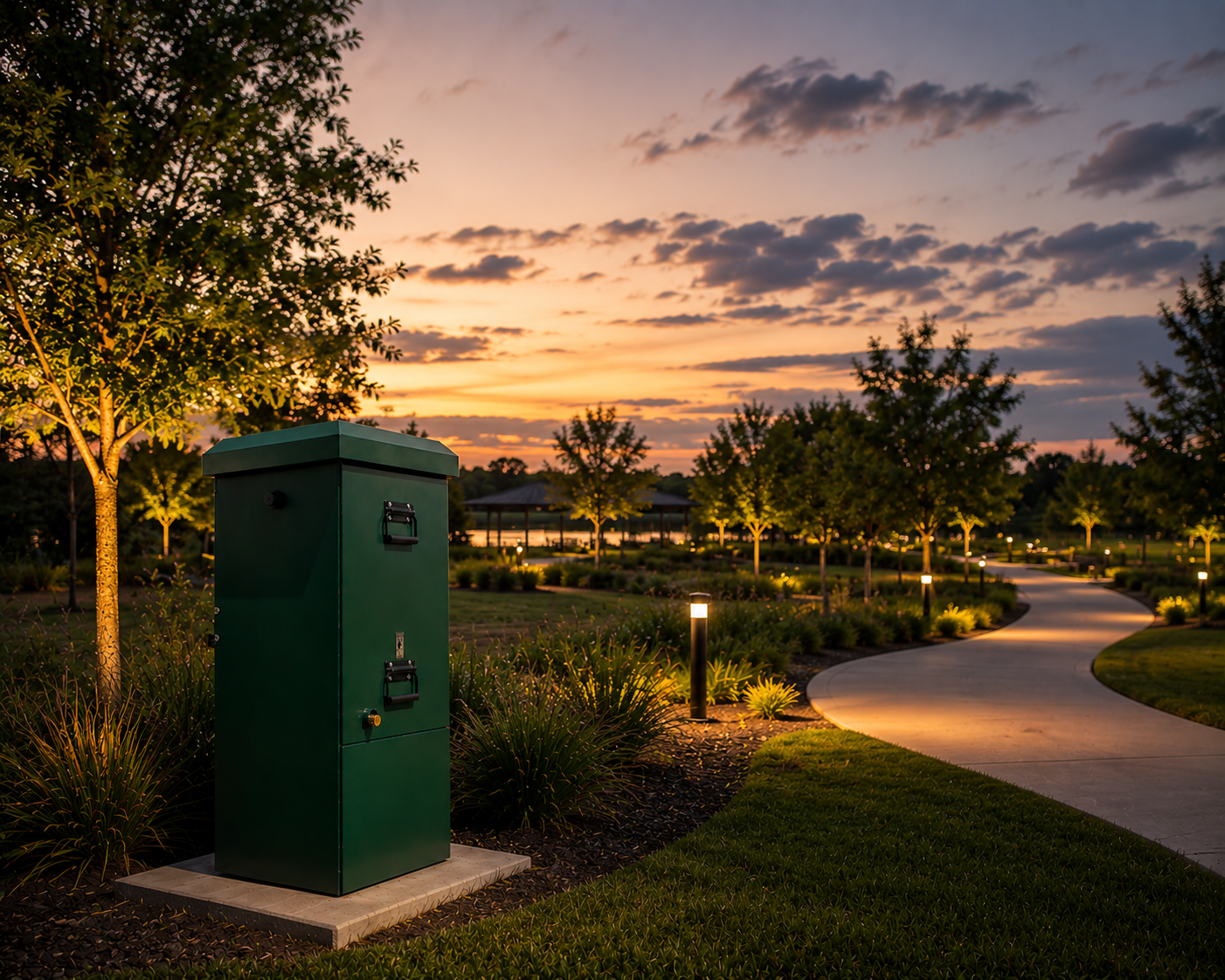

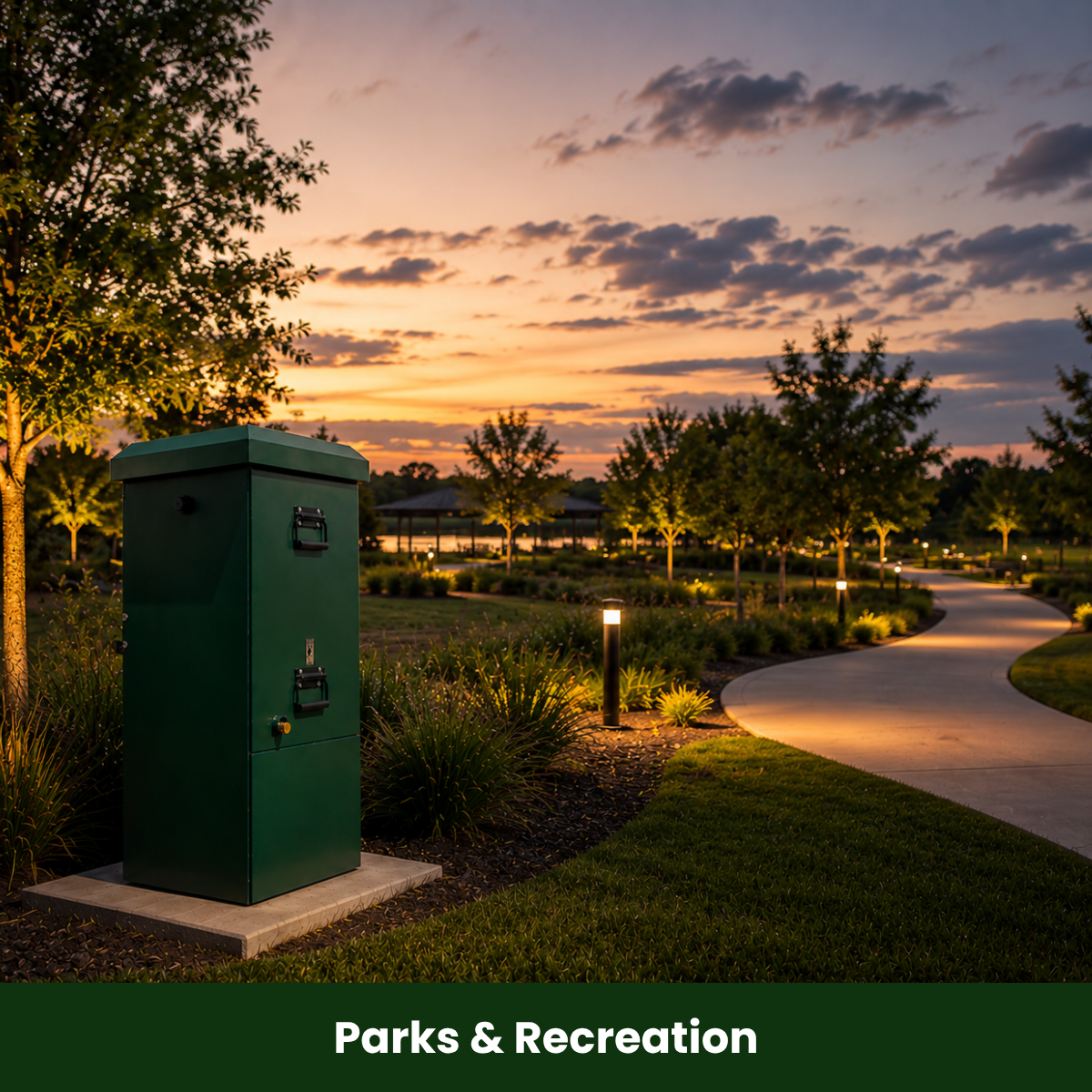

  • Park/Campground

  • Marina

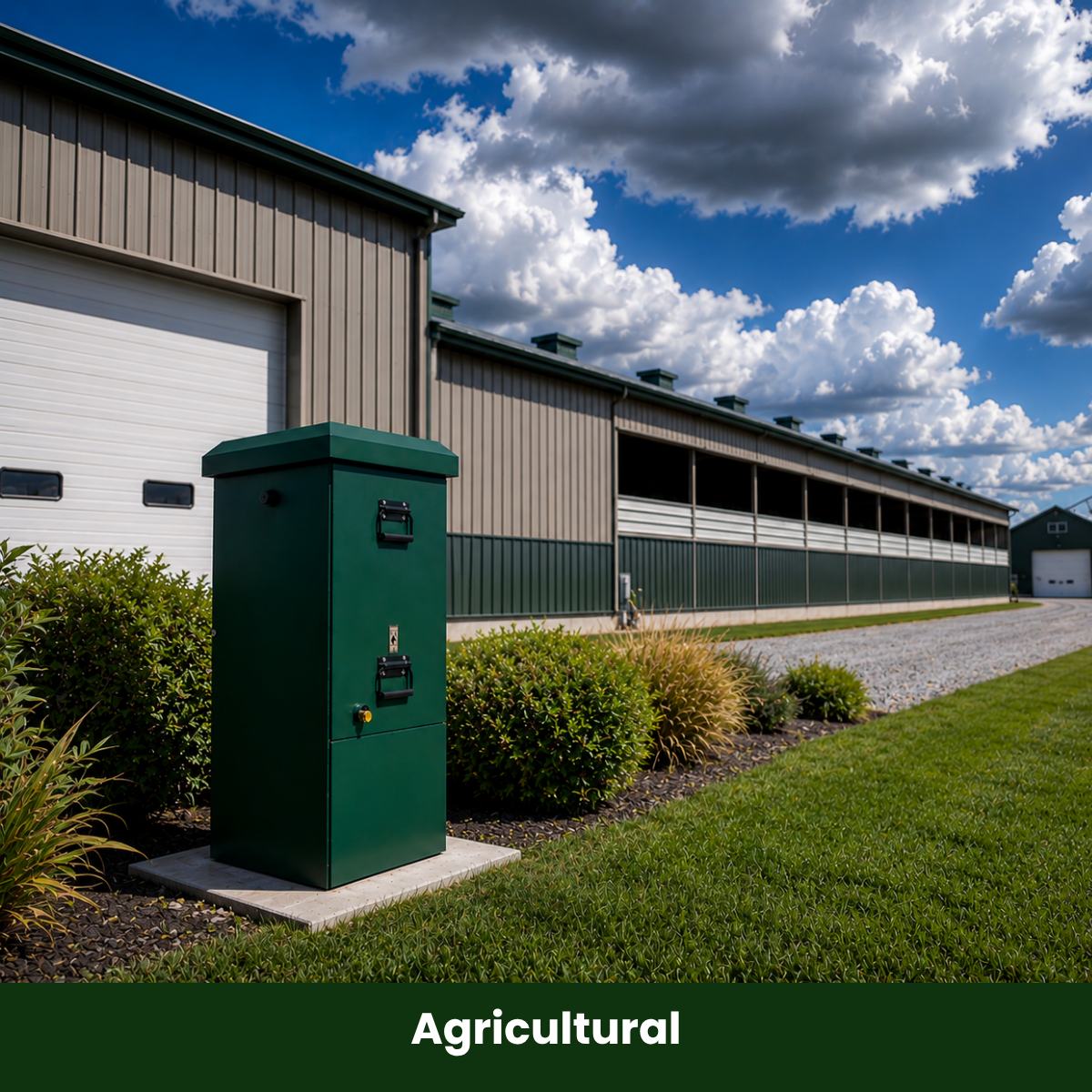

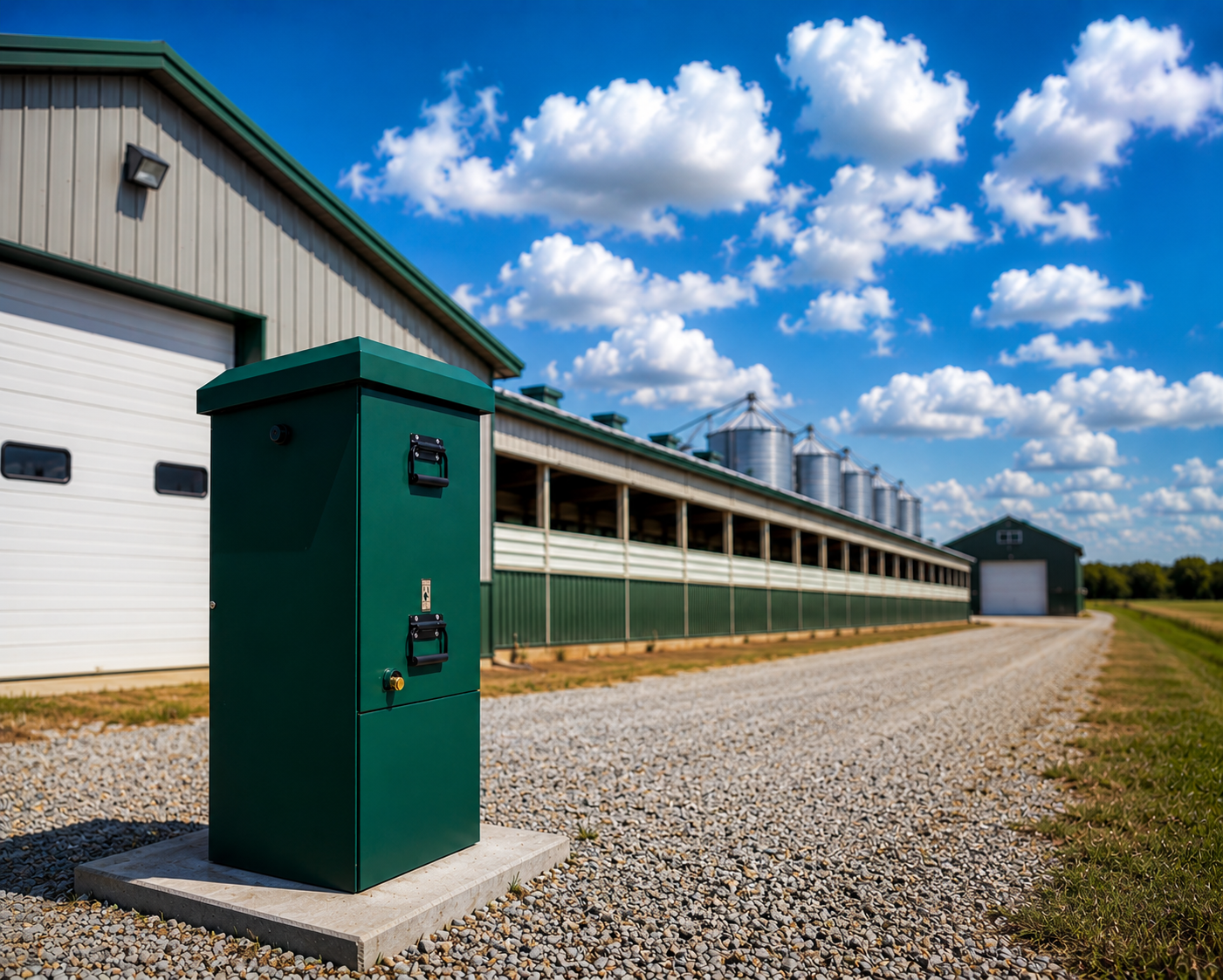

  • Agricultural

  • Used in conjunction with Transformers to reduce number of road crossings, saving on wire and restoration.
